Product Summary

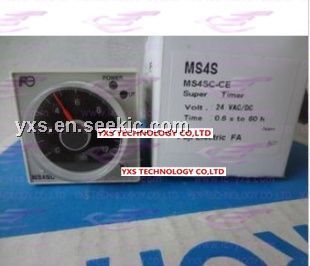

The MS4SC-CE is a time relay.
Parametrics
MS4SC-CE absolute maximum ratings: (1)Voltage: 24VDC/AC; (2)Time Range: 0.05 seconds to 60 hours; (3)Operating Voltage Range: 20.4-26.4 VDC/AC; (4)Operating Temperature Range: -10 to +55℃ (no icing); (5)Humidity: 35 to 85% (no condensation); (6)Contact Ratings: 5 A at 30 VDC resistive load, 1 A @ 30 VDC inductive load, 5 A @ 250 VAC resistive load, 2.5 A @ 120 VAC inductive load; (7)Power Consumption: Approx. 10 VA for AC, 1 W at 24 VDC; (8)Insulation Resistance: 100mΩ at 500 VDC insulation tested.
Features
MS4SC-CE features: (1)On-delay timer; (2)8-pin plug-in with a SPDT timed contact output and a SPDT instantaneous contact output; (3)Timing range from 0.05 seconds to 60 hours; (4)Timer scale with selectable ranges of 0-6, 0-12, 0-30 and 0-60; (5)Timing units in selectable ranges of 0.1s, sec, min and hrs; (6)Power on LED indicator (green) flickers during timing operation, UP (red) LED is on when normally open contact is closed.
