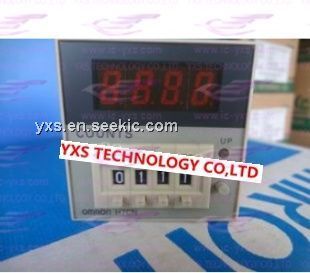

Product Summary

The H7CN-XLN is a 1/16 DIN, Single Preset Counter with Four-Digit LED Display.

Parametrics

H7CN-XLN absolute maximum ratings: (1)Supply voltage: AC 100 to 240 VAC, 50/60 Hz, DC 12 to 48 VDC (20% max. ripple); (2)Operating voltage range: 85 to 110% of rated voltage; (3)Power consumption: Approx. 12 VA/2.5 W at 240 VAC, 50 Hz, approx. 2.5 W at 48 VDC; (4)Max. counting speeds (CP1, CP2): 30 cps with contact and solid-state inputs, 5,000 cps with solid-state inputs only; (5)Minimum pulse widths: 16.7 ms at 30 cps (ON/OFF ratio of 1:1), 0.1 ms at 5 kcps (ON/OFF ratio of 1:1).

Features

H7CN-XLN features: (1)Choose from UP, DOWN and reversible counting; (2)Count speed up to 5 K counts per second; (3)Wide-range AC or DC supply voltages; (4)Contact and solid-state output models available; (5)Memory protection circuit available on AC models; (6)Easy-to-read 8 mm-high LED display; (7)Panel mounting adapter, sockets, and accessories available separately.

Diagrams

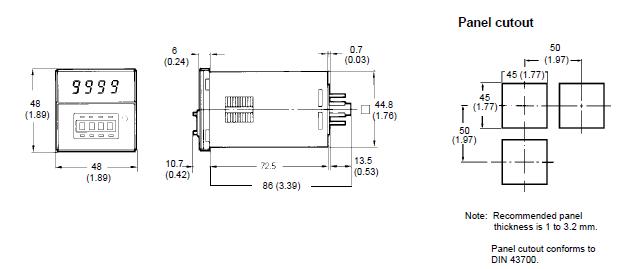

H7CN-XLN package dimensions
