Product Summary

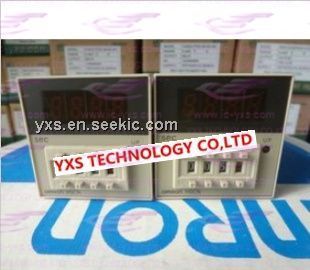

The H5CN-XAN is a kind of Miniature DIN-sized (48 x 48 mm) Quartz Timer with Abundant Series Versions.
Parametrics
H5CN-XAN specifications: (1)Operating voltage range: 85% to 110% of rated supply voltage; (2)Mounting method: Surface mounting or flush mounting; (3)Display: 7-segment LEDs (8-mm-high characters), UP indicator; (4)Resetting system and gate input: Reset by power-OFF: min. power OFF time: 0.5 s; External reset or gate (common to contact and solid-state inputs): min. reset input signal width: 0.02 s; residual voltage: 2 V max.; (5)Output mode: N mode (Power ON-delay).
Features
H5CN-XAN features: (1)Series version cover a wide range of rated times; 9.999 s, 99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min; (2)Selection of elapsed time indication, remaining time indication, contact output, and solid-state output types to suit requirements; (3)Power supply freely selectable within a range of 100 to 240 VAC, as well as 12 to 48 VDC; (4)Certified for UL and CSA safety standards.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() H5CN-XAN AC100-240 |
![]() Omron Industrial |
![]() Stopwatches & Timers Timer Digital LED |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() H5CN-XAN DC12-48 |
![]() |
![]() TIMER DGTL 4DIGIT DISPLAY 8PIN |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() H5CN-XANM AC100-240 |
![]() |
![]() TIMER DGTL 4DIGIT DISP 11PIN MEM |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() H5CN-XANS DC12-48 |
![]() |
![]() TIMER DGTL 4DIGIT DISPLAY 8PIN |
![]() Data Sheet |
![]()
|
|
