Product Summary
The H3Y-2 is a solid-state timer.
Parametrics
H3Y-2 absolute maximum ratings: (1)Rated supply voltage: 110, 220 VAC (50/60 Hz), 24 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Accuracy of operating time: ±2% max.; (4)Setting error: ±10% (max. time division at rated voltage and room temperature); (5)Reset time: 0.1 s max.; (6)Influence of voltage: ±2% max.; (7)Insulation resistance: 100 MΩ min. (at 500 VDC); (8)Ambient temperature Operating: –10°C to 50°C (with no icing).
Features
H3Y-2 features: (1)Large transparent time-setting knob facilitates time setting; (2)Flat-blade and Phillips screwdrivers can also be used for time setting; (3)Approved by UL and CSA; (4)Pin configuration compatible with MY Power Relay; (5)LED indication for power and output statuses; (6)Conforms to EMC standards; (7)High repeat accuracy.

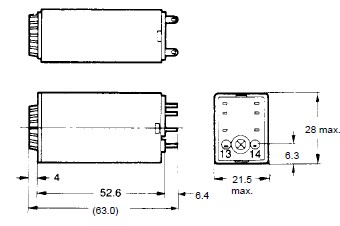

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H3Y-2 AC100-120 10M |
|
MINI TIMER |
Data Sheet |
|
|
||||||||||||||
 |
H3Y-2 AC100-120 10S |
Omron Industrial |
Stopwatches & Timers Timer Mini |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC100-120 1S |
Omron Industrial |
Controllers TIMER MINI |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC100-120 30M |
|
TIMER SS MINI DPDT 30MINUTE |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC100-120 30S |
|
TIMER SS MINI DPDT 30SECONDS |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC100-120 5M |
Omron Industrial |
Controllers TIMER MINI |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC100-120 5S |
|
TIMER SS MINI DPDT 5SECONDS |
Data Sheet |
|
|
||||||||||||||
|
H3Y-2 AC200-230 10S |
Omron Industrial |
Stopwatches & Timers TIMER MINI |
Data Sheet |
|
|
||||||||||||||
