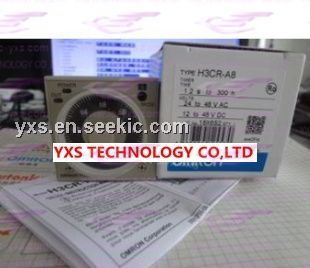

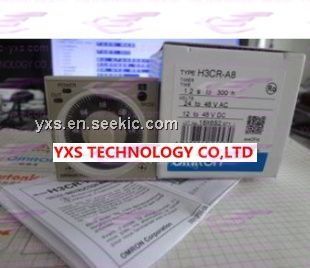

H3CR-A8

H3CR-A8, Solid-state Multi-functional Timer, 100 to 240 VAC, 50/60 Hz, 100 to 125 VDC, 24 to 48 VAC, 12 to 48 VDC, 1 kΩ, 0.2 W, Omron Electronics LLC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $38.00~58.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	58.00 / Piece
20 ~ 30 :	48.00 / Piece
30 ~ 40 :	38.00 / Piece

PartNumber:: H3CR-A8

Brand:: Omron Electronics LLC - OMRON | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-16

From Other Seller

Part Number:H3CR-A8
US $38.00 - 58.00
H3CR-A8

US $34.88 - 38.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

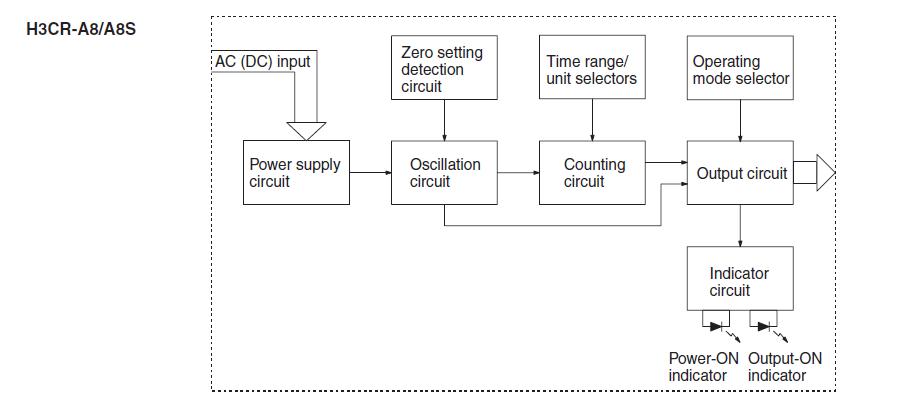

The H3CR-A8 is a Solid-state Multi-functional Timer which is the Multiple Operating Modes and Multiple Time Ranges. DIN 48 x 48-mm Multifunctional Timer with Wide AC/DC Power Supply Range for Both High and Low Voltages.

Parametrics

H3CR-A8 absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC (50/60 Hz)/100 to 125 VDC, 24 to 48 VAC (50/60 Hz)/12 to 48 VDC; (2)Time range: 0.05 s to 300 h; (3)Operating voltage range: 85% to 110% of rated supply voltage (90% to 110% at 12 VDC); (4)Power reset Minimum power-opening time: 0.1 s; (5)No-voltage Input ON impedance: 1 kΩ max.; (6)No-voltage Input ON residual voltage: 1 V max.; (7)No-voltage Input OFF impedance: 100 kΩ min.; (8)Power consumption: 100 to 240 VAC/100 to 125 VDC (When at 240 VAC, 60 Hz) Relay ON approx. 2.0 VA (1.6 W), Relay OFF approx. 1.3 VA (1.1 W); 24 to 48 VAC/12 to 48 VDC (When at 24 VDC) Relay ON approx. 0.8 W, Relay OFF approx. 0.2 W.

Features

H3CR-A8 features: (1)A wide AC/DC power supply range greatly reduces the number of timer models kept in stock; (2)A wide range of applications with multiple operating modes, six modes for 11-pin models and four modes for 8-pin models; (3)Ecological design with reduced current consumption; (4)Easy sequence checking with instantaneous outputs for a zero set value; (5)Length of 80 mm or less when panel-mounted with a P3GA-11 Socket; (6)PNP input models available; (7)Standards: UL, CSA, NK, LR, EN 61812-1, and CE Marking.
