Product Summary

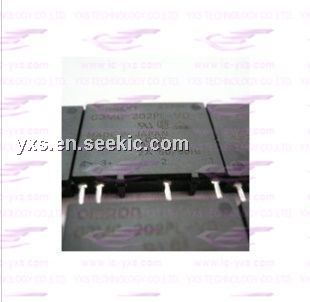

The G3MC-202PL-VD-1-12V is a kind of Compact, Thin-profile, Low-cost SSR with Reinforced Insulation.

Parametrics

G3MC-202PL-VD-1-12V absolute maximum ratings: (1)Release time: 1/2 of load power source cycle + 1 ms); (2)Output ON voltage drop: 1.6 V (RMS) max.; (3)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (4)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min (3,000 VAC, 50/60 Hz for 1 min. for G3MC-@@@-VD-1); (5)Vibration resistance: Malfunction: 10 to 55 Hz, 0.75-mm double amplitude; (6)Shock resistance: Malfunction: 1,000 m/s2 (approx. 100G.

Features

G3MC-202PL-VD-1-12V features: (1)Small bottom surface area (approx 80% of the conventional G3MB), ideal for close PCB mounting; (2)DC input and AC output for an applicable load of 1A at 40°C; (3)Compact, thin-profile SSR of monoblock construction with an all-in-one frame incorporates a PCB, terminals, and a heatsink; (4)Approved by UL and CSA VDE certified models available; (5)Models with reinforced insulation are available.

Diagrams

G3MC-202PL-VD-1-12V circuit diagram
