Product Summary

The G9S-2001 is one kind of ultra slim safety relay unit. And it is the ideal for safety door and emergency stop switch circuits for machines in European countries.

Parametrics

G9S-2001 absolute maximum ratings: (1)Input voltage/frequency: 24 VDC; (2)Supply voltage range: 85% to 110% of rated power supply voltage; (3)Fuse protection: none; (4)Contact form of safety circuit: DPST-NO; (5)Insulation resistance (at 500 VDC): 100 MW min. between control circuit and the safety and auxiliary circuits, between the safety circuits and auxiliary circuits, and between safety circuits; (6)Rated insulation voltage: 250 V.

Features

G9S-2001 features: (1)Two-pole slim models that are only 22.5 mm wide, three-pole models that are only 67.5 mm wide, and five-pole models that are only 90 mm wide are available; (2)OFF-delay models are available; (3)Incorporates LED indicators for monitoring built-in relays; (4)Finger-protection construction; (5)Both DIN track mounting and screw mounting possible (two-pole models); (6)Conforms to EN60204-1 (IEC204-1), EN954-1, and approved by BIA.

Diagrams

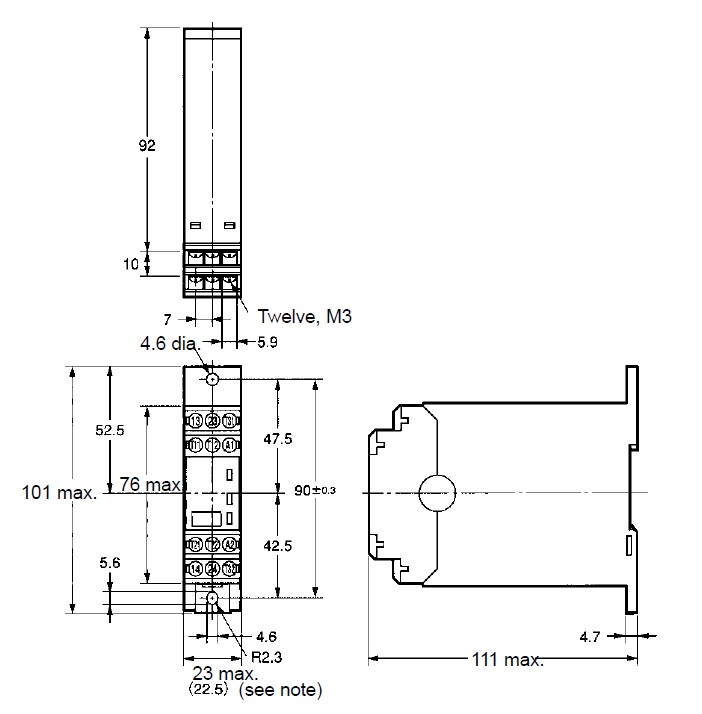

G9S-2001 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G9S-2001 DC24
G9S-2001 DC24

Omron Electronics

Safety Relays SAFETY RELAY DPST-NO DC24

Data Sheet

0-1: $221.48
1-10: $214.07
10-25: $211.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G9S-2001 DC24
G9S-2001 DC24

Omron Electronics

Safety Relays SAFETY RELAY DPST-NO DC24

Data Sheet

0-1: $221.48
1-10: $214.07
10-25: $211.63
