Product Summary
The G7T-1012S is a slim-styled I/O relay.
Parametrics
G7T-1012S absolute maximum ratings: (1)Ambient Humidity Operating: 5% to 85%; (2)Ambient temperature Operating: 0°C to 55°C; (3)Vibration resistance 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude); (4)Insulation resistance 1,000 MΩ (at 500 VDC); (5)Dielectric strength 2,000 VAC for 1 minute; (6)Contact resistance: 10 mΩ max.; (7)Ambient temperature Operating:–40°C to 70°C (with no icing or condensation).
Features
G7T-1012S features: (1)SPST-NO, SPST-NC, and SPDT contact forms available for output (SPST-NO only for input); (2)Ultra-slim housing measuring 29 (W) x 10 (D) x 32 (H) mm; (3)All Output Relays provide a long endurance (1,000,000 operations at 5 A), while all Input Relays provide microswitching power (100 μA at 1 V).; (4)Approved by UL and CSA standards.

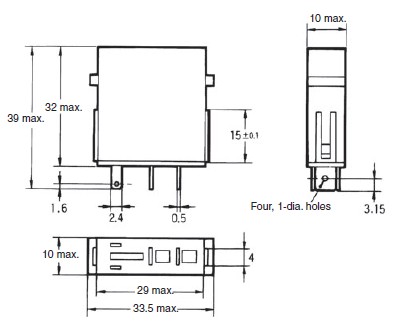

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G7T-1012S DC24 |
|
RELAY BLOCK 16POS 24VDC NPN |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
G7T-1012S DC24 |
|
RELAY BLOCK 16POS 24VDC NPN |
Data Sheet |
|
|
||||||
|
G7T-1112S-DC12V |
|
RELAY BLOCK 12VDC NPN |
Data Sheet |
|
|
||||||
|
G7T-1112S-DC24V |
|
RELAY BLOCK 24VDC NPN |
Data Sheet |
|
|
||||||
|
G7T-1122S AC110/120 |
|
RELAY BLOCK INPUT |
Data Sheet |
|
|
||||||
|
G7T-1122S AC200/220 |
|
RELAY I/O P7TF SPST-NO 100VAC |
Data Sheet |
|
|
||||||
|
G7T-1122S DC125 |
|
RELAY BLOCK 125VDC |
Data Sheet |
|
|
||||||
