Product Summary

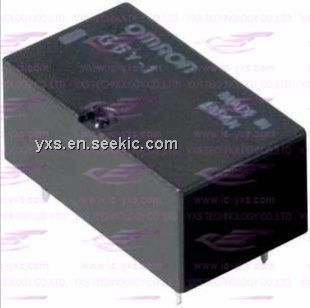

The G6Y-1-5V is a kind of Economical HF Relay Design Based on Micro Strip Line Technology.Typical applications include: (1)Wired Communications: Cable TV, captain systems, and video response systems; (2)Wireless Communications: Transceivers, ham radio, fax machines, satellite broadcasting, text multiplex broadcasting; (3)Entertainment Equipment: TVs, DVD players, and video games; (4)Industrial Equipment: Measuring equipment, test equipment, and multiplex transmission devices.

Parametrics

G6Y-1-5V absolute maximum ratings: (1)Load type: Resistive load; (2)Contact Material: Au clad Cu alloy; (3)Rated carry current: 0.5 A; (4)Max. switching voltage: 30 VAC, 30 VDC; (5)Max. switching current: 0.5 A; (6)Max. switching capacity: AC10VA, DC10W.

Features

G6Y-1-5V features: (1)Isolation characteristics of 65 dB or better at 900 MHz; (2)Effective insertion loss of 02 dB (typical) at 900 MHz; (3)Fully sealed construction; (4)Improved shock-resistance; (5)Form, fit and function replacement to G5Y relay with improved characteristics; (6)RoHS Compliant.

Diagrams

G6Y-1-5V circuit diagram
