Product Summary
The G3R-202SN is a solid state relay.
Parametrics
G3R-202SN absolute maximum ratings: (1)Response frequency: 20 Hz; (2)Output ON voltage drop: 1.6 V max.; (3)Leakage current: 1.5 mA max.; (4)Insulation resistance: 100 MΩ min.; (5)Dielectric strength: 4,000 VAC, 50/60 Hz for 1 min.; (6)Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude; (7)Shock resistance: 1,000 m/s2 {approx. 100G}; (8)Ambient temperature Operating: -30°C to 80°C (with no icing), Storage: -30°C to 100°C (with no icing).
Features
G3R-202SN features: (1)High-speed models with optimum input ratings for a variety of sensors are available; (2)Input Modules and Output Modules that have the same form-factor as the G2R; (3)Using a coupler approved by VDE 0884 and assuring an I/O dielectric strength of 4 kV; (4)Incorporating an easy-to-see monitoring indicator; (5)Approved by UL, CSA, and TÜV. (“-UTU” models).

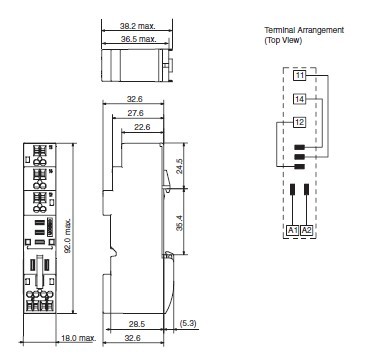

Diagrams
