Product Summary

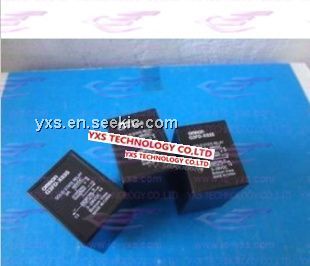

The G3FD-X03S is a solid-state relay.

Parametrics

G3FD-X03S absolute maximum ratings: (1)Operate time: 0.5 ms max.; (2)Release time: 2 ms max.; (3)Output ON voltage drop: 1.5 V max.; (4)Leakage current: 5 mA max. (at 50 VDC); (5)Insulation resistance: 100 MΩ min. (500 VDC); (6)Dielectric strength: 1,500 VAC, 50/60 Hz for 1 min; (7)Vibration resistance: 10 to 55 to10 Hz, 1.5-mm single amplitude; (8)Ambient temperature: Operating: -30°C to 100°C (with no icing or condensation); (9)Ambient humidity Operating: 45% to 85%.

Features

G3FD-X03S features: (1)Sizes and terminal arrangements are the same as OMRON MY-series Power Relays. The same Sockets are also used; (2)DC-AC, DC-DC, AC-AC, AC-DC Types; (3)Operating indicator provided.

Diagrams

G3FD-X03S dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G3FD-X03S DC3-28
G3FD-X03S DC3-28
Omron Electronics
Solid State Relays SOLID STATE RELAY
Data Sheet
Negotiable
G3FD-X03S-DC3-28
G3FD-X03S-DC3-28
Omron Industrial
Solid State Relays SOLID STATE RELAY
Data Sheet
0-1: $21.14
1-25: $20.54
25-50: $19.93
50-100: $19.33
G3FD-X03SN-DC5-24
G3FD-X03SN-DC5-24
Omron Industrial
Solid State Relays Photocoupler, 3 Amp Input 5-24VDC
Data Sheet
0-1: $22.76
1-25: $21.54
25-50: $20.23
50-100: $19.73
G3FD-X03SN-VD DC5-24
G3FD-X03SN-VD DC5-24
Omron Industrial
Solid State Relays Solid State Relay
Data Sheet
0-1: $12.41
1-25: $12.05
25-50: $11.70
50-100: $11.35
G3FD-X03S-VD DC4-24
G3FD-X03S-VD DC4-24
Omron Industrial
Solid State Relays Solid State Relay
Data Sheet
0-1: $15.39
1-5: $15.05
5-10: $14.53
10-25: $14.02
G3FD-X03SN DC5-24
G3FD-X03SN DC5-24
Omron Electronics
Solid State Relays Solid State Relay
Data Sheet
Negotiable
