Product Summary
The ELR-3/9-400 is a solid steering contactor.
Parametrics
ELR-3/9-400 absolute maximum ratings: (1)Nominal supply voltage: 24 V DC; (2)Typical input current at UN: 8 mA; (3)Transmission frequency: 30 Hz; (4)Typical response time: 10 ms; (5)Ambient temperature (operation): -20 ℃ to 80 ℃; (6)Nominal output voltage: 230 V AC; (7)Nominal output voltage range: 24 V AC to 280 V AC; (8)Periodic peak reverse voltage: 1000 V (Periodic peak reverse voltage); (9)Mains frequency: 50 Hz/60 Hz; (10)Continuous load current: 25 A (see derating curve); (11)Load current: Min. 100 mA; (12)Leakage current: 3 mA; (13)Residual voltage: 1.8 V; (14)Surge current: 400 A (t = 8.33 ms, @ 25℃); (15)Max. load value: 720 A2s.
Features
ELR-3/9-400 features: (1)EAN 4017918147617; (2)Pack 1 Pcs.; (3)Customs tariff 85364900; (4)Weight/Piece 0.2651 KG; (5)Typical turn-off time 10 ms; (6)Status display LED green.

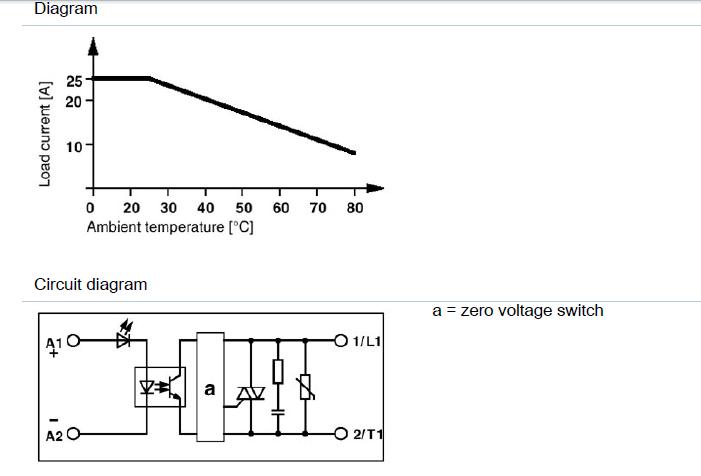

Diagrams
