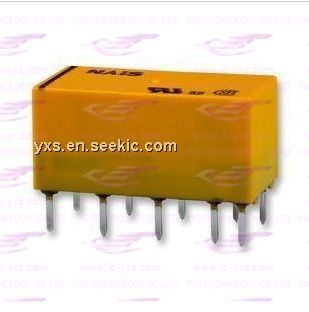

Product Summary

DS2E-ML2-5V is a kind of Low Signal Relay.Typical applications include: (1)Telecommunication equipment; (2)Office equipment; (3)Computer peripherals; (4)Security equipment; (5)Measuring instrumentation.

Parametrics

DS2E-ML2-5V absolute maximum ratings: (1)Arrangement: 1, 2 , 4 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 50 mΩ; (3)Contact material: Gold-clad sliver; (4)Max. switching power: 60 W, 125 VA; (5)Max. switching voltage: 220 V DC, 250 V AC; (6)Max. switching current: 2 A DC, AC; (7)Max. carrying current: 3 A DC, AC.

Features

DS2E-ML2-5V features: (1)High sensitivity: 200 mW pick-up power; 100 mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts; 1,000 V AC between open contacts; (5)DIP-1C type can be used with 14 pin IC socket: 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets; (6)Gold-cap silver palladium types available for 2 Form C type.

Diagrams

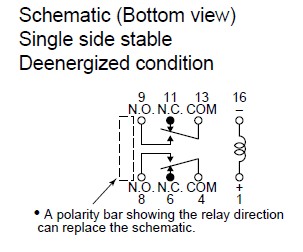

DS2E-ML2-5V circuit diagram
