Product Summary

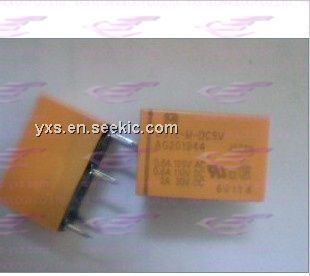

The DS1E-M-DC5V is a highly sensitive 1500 V FCC surge withstanding miniature relay. Applications are (1)Telecommunication equipment; (2)Office equipment; (3)Computer peripherals; (4)Security equipment; (5)Measuring instrumentation.
Parametrics
DS1E-M-DC5V absolute maximum ratings: (1)Nominal voltage: 5 VDC; (2)Pick-up voltage, (max.): 3.5 VDC; (3)Drop-out voltage, (min.): 0.5 VDC; (4)Coil resistance, (±10%): 62.5 Ω; (5)Maximum allowable, (at 50°C 122°F): 6 VDC.
Features
DS1E-M-DC5V features: (1)High sensitivity: 200 mW pick-up power 100 mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts 1,000 V AC between open contacts; (5)DIP-1C type can be used with 14 pin IC socket 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets; (6)Gold-cap silver palladium types available for 2 Form C type; (7)Bifurcated contacts are standard.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1E-M-DC5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC SPDT NON-LATCHING |
Data Sheet |
|
|
||||||||||||
 |
DS1E-M-DC5V-R |
Panasonic Electric Works |
Low Signal Relays - PCB 1 Form C, 48VDC 1 Form C 400mW Type |
Data Sheet |
|
|
||||||||||||
