Product Summary

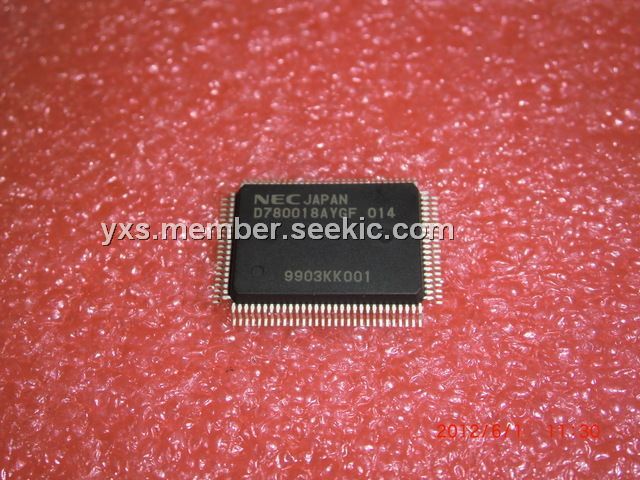

The UPD780018AYGF-014-3BA is an 8-bit single-chip microcontroller.
Parametrics
UPD780018AYGF-014-3BA absolute maximum ratings: (1)VDD: –0.3 to +6.5 V; (2)VPP: –0.3 to +10.5 V; (3)AVDD: –0.3 to VDD + 0.3Note V; (4)AVREF: –0.3 to VDD + 0.3Note V; (5)AVSS: –0.3 to +0.3 V; (6)Operating ambient TA During normal operation: –40 to +85℃; (7)temperature During flash memory programming: +10 to +40℃; (8)Storage temperature Tstg: –40 to +125℃.
Features
UPD780018AYGF-014-3BA features: (1)Pin-compatible with mask ROM versions (except VPP pin); (2)Flash memory: 32 KBNote; (3)Internal high-speed RAM: 1,024 bytesNote; (4)Supply voltage: VDD = 1.8 to 5.5 V.

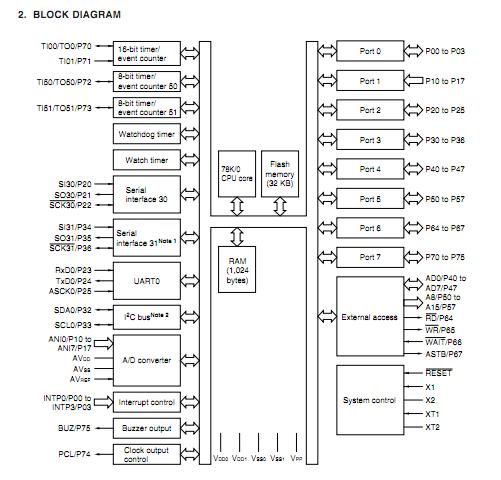

Diagrams
 |
