Product Summary
The UPC4074G2 is a J-FET intput operatonal amplifier. The features of the device are more improved input equivalent noise votlage, input offset voltage and intput bias current than UPC4084. The UPC4074G2 is excellent choice for wide variety of applications including audio preamplifer and active filter.
Parametrics
UPC4074G2 absolute maximum ratings: (1)voltage between V+ and V-, V+-V-: -0.3 to 36V; (2)differential intput voltage, VID: ±30V; (3)input voltage, VI: V+-0.3 to V++0.3V; (4)output voltage, VO: V--0.3 to V++0.3V; (5)power dissipation, PT: 570mW; (6)output short circuit duration: indefinite; (7)operating temperature range, Topt: -20 to 80℃; (8)storage temperature range, Tstg: -55 to 125℃.
Features
UPC4074G2 features: (1)low noise; (2)very low input bias and offset currents; (3)output short circuit protection; (4)high input impedance: J-FET input stage; (5)internal frequency compensation; (6)high slew rate.

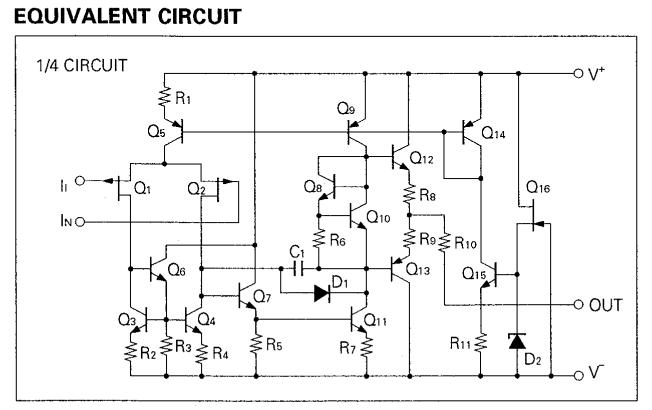

Diagrams
 |
