Product Summary

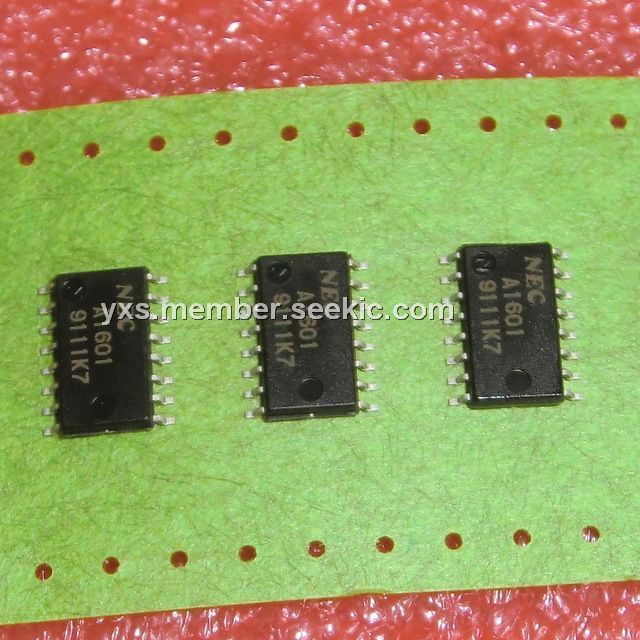

The UPA1601GS is a monolithic N-channel power MOS FET array that built in 3 circuits and resistance desinged for LED, relay, thermal head, and so on.
Parametrics
UPA1601GS absolute maximum ratings: (1)output voltage, VO(DC): 30V; (2)output peak voltage, VO(peak): 50V; (3)input voltage, VI: -0.5 to 20V; (4)output current(DC), IDO(DC): 460mA/unit; (5)output current (pulse), IO(pulse): 500mA/unit; (6)input current, Ii: ±10mA/unit; (7)total power dissipation, PT: 1.0W/PKG; (8)operating temperature, Topt: -40 to 85℃; (9)storage temeprature, Tstg: -55 to 85℃; (10)storage temeprature, Tstg: -55 to 150℃.
Features
UPA1601GS features: (1)direct driving is possible by standard logic IC or microcomputer; (2)output voltage: VO=30V max; output current: Io=500m max; (3)Ron=3Ω typ; (4)large operation temeprature: -40 to 85℃.

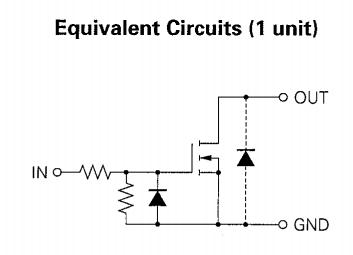

Diagrams
 |
