ULN2003ADR2G

Darlington Transistor Array, DIP, 50 V, 500 mA, ULN2003ADR2G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~0.85

PartNumber:: ULN2003ADR2G

Brand:: ON Semiconductor - ON | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-28

From Other Seller

Part Number:ULN2003ADR2G
US $0.60 - 0.85
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

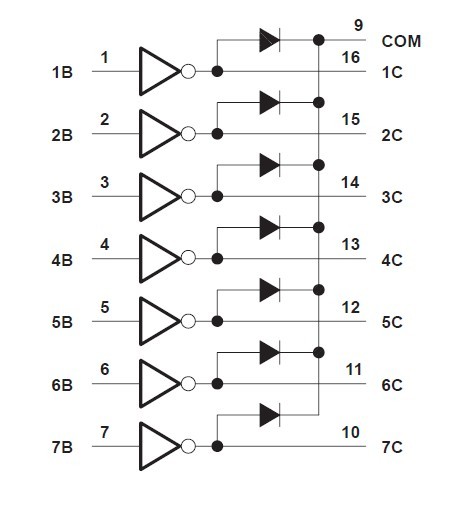

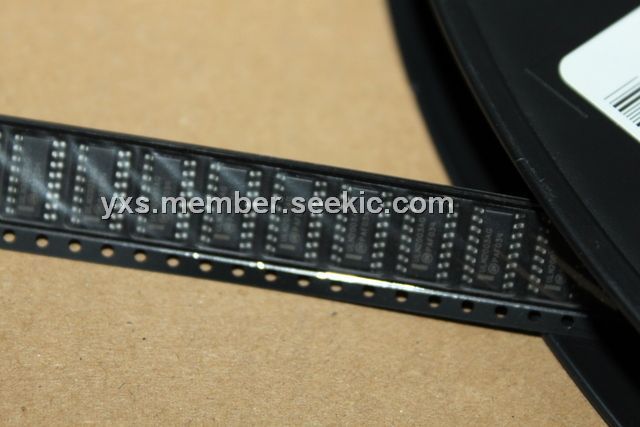

The ULN2003ADR2G is a high-voltage, high-current Darlington transistor array. The device consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications of the ULN2003ADR2G include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. For 100-V (otherwise interchangeable) versions of the ULN2003A, see the SN75468 and SN75469, respectively.

Parametrics

ULN2003ADR2G absolute maximum ratings: (1)Collector-emitter voltage: 50 V; (2)Clamp diode reverse voltage: 50 V; (3)Input voltage, VI: 30 V; (4)Peak collector current: 500 mA; (5)Output clamp current, IOK: 500 mA; (6)Total emitter-terminal current: –2.5 A; (7)Operating free-air temperature range, TA, : –20℃ to 70℃; (8)Package thermal impedance, θJA: D package: 73℃/W; N package: 67℃/W; NS package: 64℃/W; (9)Package thermal impedance, θJC: D package: 36℃/W; N package: 54℃/W; (10)Operating virtual junction temperature, TJ: 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (12)Storage temperature range, Tstg: –65℃ to 150℃.

Features

ULN2003ADR2G features: (1)500-mA-Rated Collector Current(Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications; (6)Designed to Be Interchangeable With Sprague ULN2001A Series.
