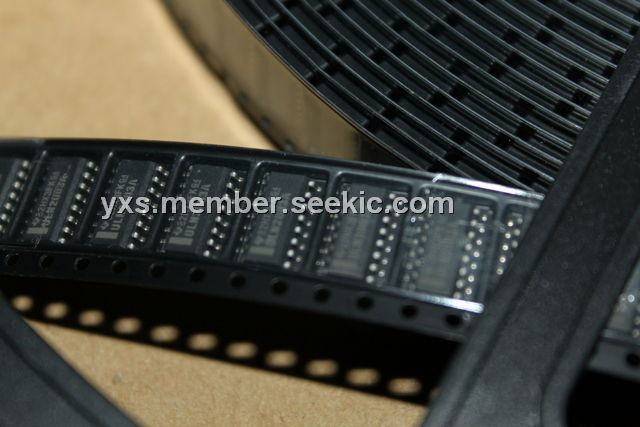

Product Summary

The ULN2003ADR is a high-voltage high-current Darlington transistor array. Each consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2003ADR is a general-purpose array and can be used with TTL and CMOS technologies. The ULN2003ADR is designed specifically for use with 14V to 25-V PMOS devices.

Parametrics

ULN2003ADR absolute maximum ratings: (1)Collector-emitter voltage, VCC: 50 V; (2)Clamp diode reverse voltage: 50 V; (3)Input voltage, VI: 30 V; (4)Peak collector current: 500 mA ; (5)Output clamp current, IOK: 500 mA; (6)Total emitter-terminal current: -2.5 A; (7)Operating free-air temperature range, TA: -20 to 70℃; (8)Package thermal impedance, θJA: 73℃/W; (9)Package thermal impedance, θJC: 36℃/W; (10)Operating virtual junction temperature, TJ: 150℃; (11)Lead temperature for 1.6 mm (1/16 inch) from case for 10 seconds: 260℃; (12)Storage temperature range, Tstg: -65 to 150℃.

Features

ULN2003ADR features: (1)500-mA-Rated Collector Current (Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications.

Diagrams

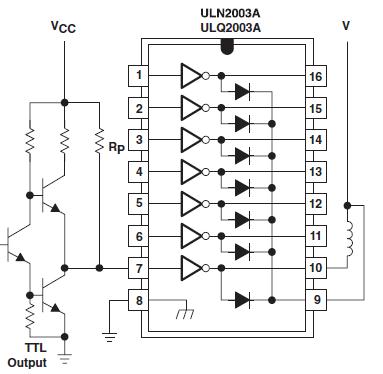

ULN2003ADR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ULN2003ADR
ULN2003ADR
Texas Instruments
Transistors Darlington Darlington
Data Sheet
0-1: $0.19
1-25: $0.14
25-100: $0.09
100-250: $0.09
ULN2003ADR2G
ULN2003ADR2G
ON Semiconductor
Transistors Darlington DARLINGTON TRNS ARRY
Data Sheet
0-1: $0.58
1-25: $0.45
25-100: $0.39
100-250: $0.34
ULN2003ADRG3
ULN2003ADRG3
Texas Instruments
Transistors Darlington Hi-Vltg,Hi-Current Darl Trans Array
Data Sheet
0-1: $0.33
1-25: $0.23
25-100: $0.20
100-250: $0.17
ULN2003ADRE4
ULN2003ADRE4
Texas Instruments
Transistors Darlington Darlington
Data Sheet
0-1: $0.34
1-25: $0.21
25-100: $0.18
100-250: $0.16
ULN2003ADRG4
ULN2003ADRG4
Texas Instruments
Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays
Data Sheet
0-1: $0.39
1-25: $0.24
25-100: $0.21
100-250: $0.18
