Product Summary

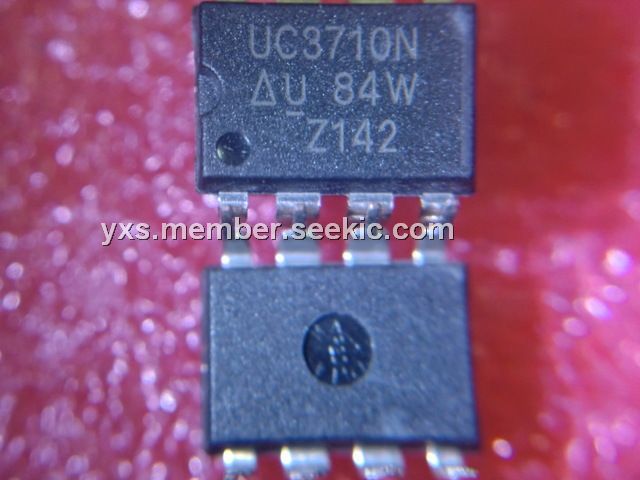

The UC3710N is a FET driver made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFET’s. The UC3710N accepts low-current digital inputs to activate a high-current, totem pole output which can source or sink a minimum of 6A.

Parametrics

UC3710N absolute maximum ratings: (1)Supply Voltage, Vin: 20V; (2)Collector Supply Voltage, VC: 20V; (3)Operating Voltage: 18V; (4)Output Current (Source or Sink), Steady-State: ± 500mA; Digital Inputs: –0.3V-VIN; (5)Power Dissipation at Ta=25℃: 3W; (6)Power Dissipation at T (Case) = 25℃: 25W; (7)Operating Junction Temperature: –55 to +150℃; (8)Storage Temperature: –65 to +150℃; (9)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

UC3710N features: (1)Totem Pole Output with 6A Source/Sink Drive; (2)3ns Delay; (3)20ns Rise and Fall Time into 2.2nF; (4)8ns Rise and Fall Time into 30nF; (5)4.7V to 18V Operation; (6)Inverting and Non-Inverting Outputs; (7)Under-Voltage Lockout with Hysteresis; (8)Thermal Shutdown Protection; (9)MINIDIP and Power Packages.

Diagrams

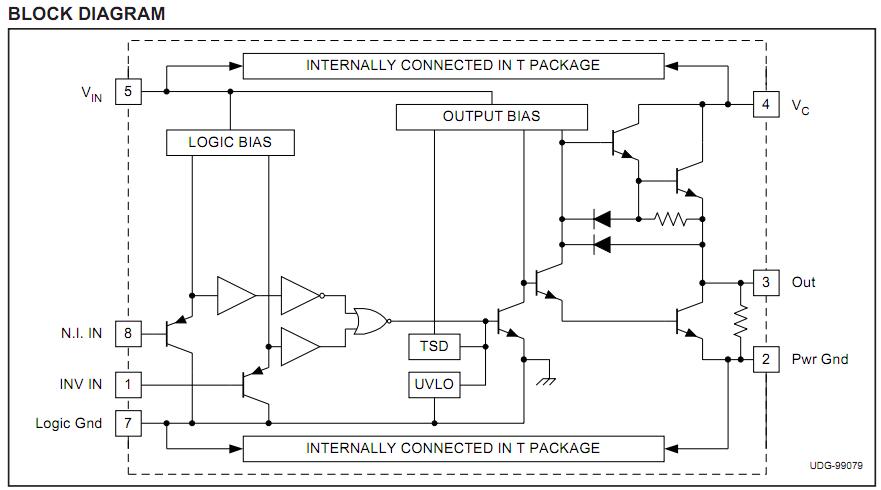

UC3710N block diagram
