Product Summary

The PI3L500ZFE is a 16- to 8- Channel multiplexer/demultiplexer LAN Switch with Hi-Z outputs. Industry leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and I/O capacitance. The PI3L500ZFE multiplexes differential outputs from a Gigabit Ethernet transceiver (PHY) device to one of two corresponding B1 or B2 outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew, high channel-to-channel noise isolation and is compatible with various standards, such as 10/100/1000 Base-T (Ethernet). The applications of the PI3L500ZFE are Dual Physical Layer Device sharing to one interface connector and Routes signals for 10/100/1000 Mbit Ethernet.

Parametrics

PI3L500ZFE absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Supply Voltage to Ground Potential: –0.5V to +4.0V; (3)DC Input Voltage: –0.5V to +5.5V; (4)DC Output Current: 120mA; (5)Power Dissipation: 0.5W.

Features

PI3L500ZFE features: (1)RON is 4Ω typical; (2)Low bit-to-bit skew: 200ps; (3)Low Crosstalk: –22dB @ 250MHz; (4)Near-Zero propagation delay: 250ps ; (5)Switching speed: 9ns ; (6)Channel On capacitance: 10pF (typical) ; (7)Live Insertion Capable ; (8)Status Indicator LEDs Switched with Ethernet pairs; (9)VCC Operating Range: +3.0V to +3.6V; (10)ESD>3000V:Human Body Model; (11)>350 MHz bandwidth (or data frequency) ; (12)Packaging: Pb-free and Green 56-contact TQFN (ZF); 56-contact TQFN (ZF).

Diagrams

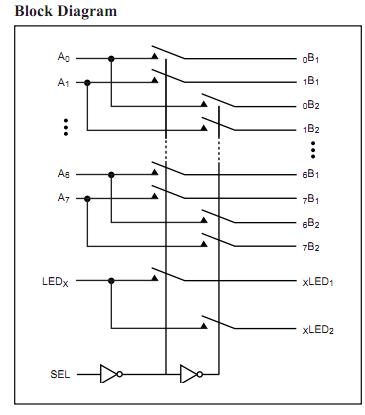

PI3L500ZFE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

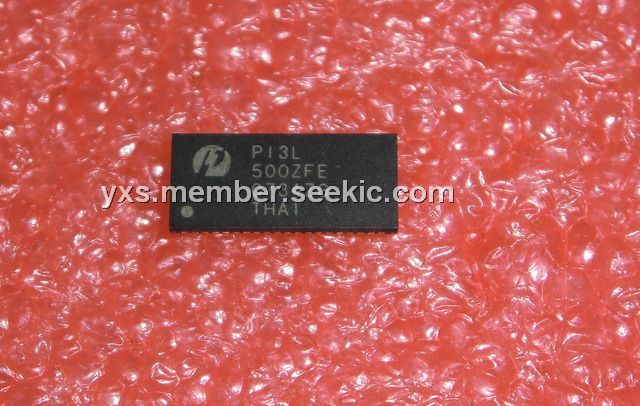

PI3L500ZFE
PI3L500ZFE

Pericom

Multiplexer Switch ICs GB Ethernet LAN Sw Mux/Demux 3.3V

Data Sheet

0-1: $1.67
1-25: $1.47
25-50: $1.46
50-100: $1.33
PI3L500ZFEX
PI3L500ZFEX

Pericom

Multiplexer Switch ICs 3.3v 8Ch 2:1 Mux/Demux

Data Sheet

0-2000: $1.03
2000-4000: $1.00
4000-6000: $0.95
