Product Summary

The TS87C51RD2-LIB is a CMOS single chip 8-bit microcontroller. The TS87C51RD2-LIB retains all features of the 80C51 with extended ROM/EPROM capacity (16/32/64 Kbytes), 256 bytes of internal RAM, a 7-source , 4-level interrupt system, an on-chip oscilator and three timer/counters.

Parametrics

TS87C51RD2-LIB absolute maximum ratings: (1)C = commercial: 0℃ to 70℃; (2)I = industrial: -40℃ to 85℃; (3)Storage Temperature: -65℃ to + 150℃; (4)Voltage on VCC to VSS: -0.5 V to + 7 V; (5)Voltage on Any Pin to VSS: -0.5 V to VCC + 0.5 V; (6)Power Dissipation: 1 W.

Features

TS87C51RD2-LIB features: (1)Dual Data Pointer; (2)On-chip ROM/EPROM (16K-bytes, 32K-bytes, 64K-bytes); (3)On-chip eXpanded RAM (XRAM) (256 or 768 bytes); (4)Programmable Clock Out and Up/Down Timer/Counter 2; (5)Hardware Watchdog Timer (One-time enabled with Reset-Out); (6)2 extra 8-bit I/O ports available on RD2 with high pin count packages; (7)Asynchronous port reset.

Diagrams

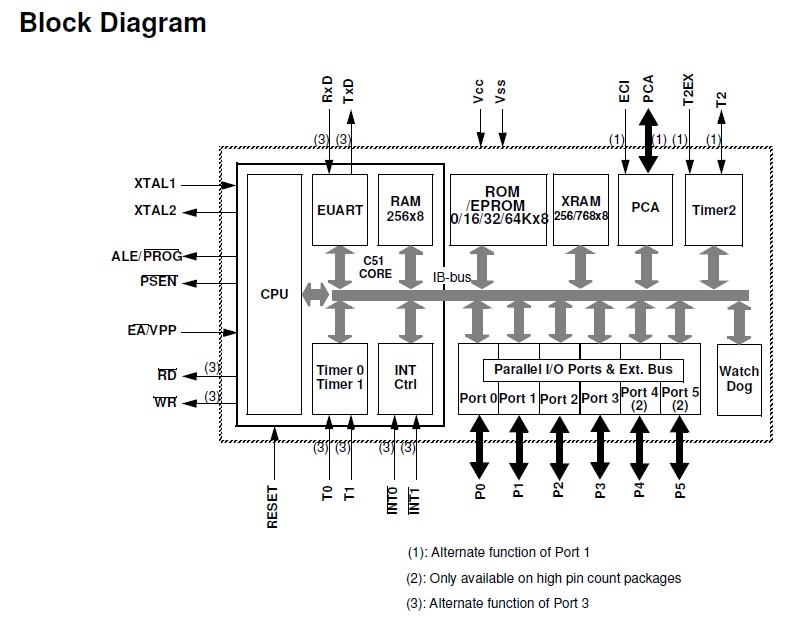

TS87C51RD2-LIB diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS87C51RD2-LIB
TS87C51RD2-LIB

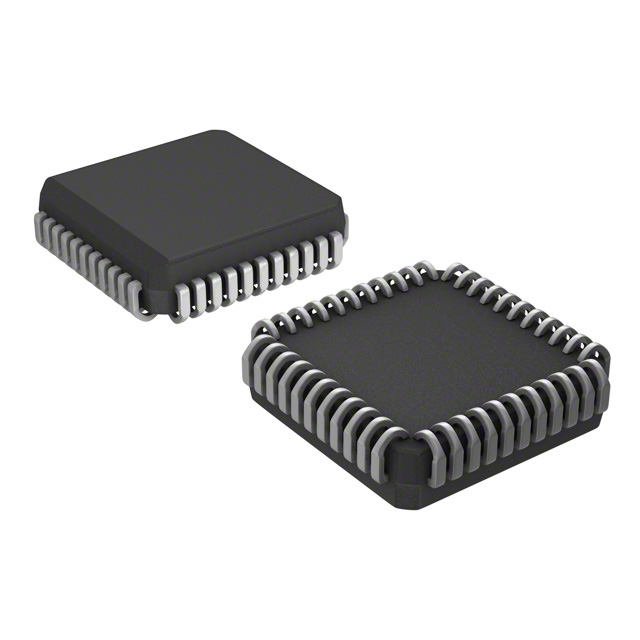

IC MCU 8BIT 64K OTP 30MHZ 44PLCC

Data Sheet

Negotiable
