Product Summary

The TL4311 is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. The TL4311 has a typical output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making the TL4311 excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.

Parametrics

TL4311 absolute maximum ratings: (1)Cathode voltage, VKA: 37V; (2)Continuous cathode current range, IKA: -100 mA to 150 mA; (3)Reference input current range: -50μA to 10 mA; (4)Operating virtual junction temperature, TJ: 150℃; (5)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TL4311 features: (1)Operation From -40℃ to 125℃; (2)Reference Voltage Tolerance at 25℃: 0.5% B Grade; 1% A Grade; 2% Standard Grade; (3)Low Output Noise; (4)0.2-Ω Typical Output Impedance; (5)Sink-Current Capability 1 mA to 100 mA; (6)Adjustable Output Voltage Vref to 36 V.

Diagrams

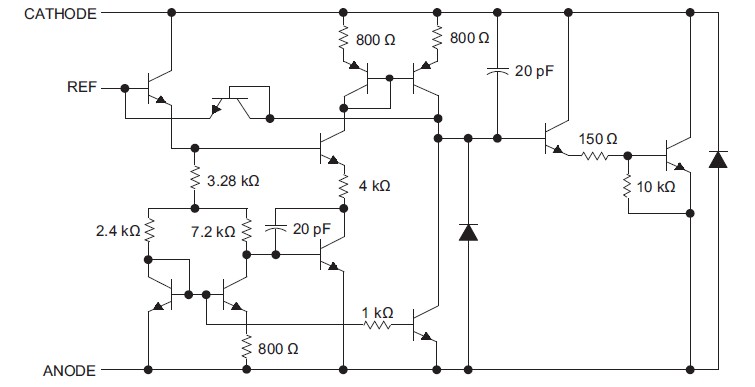

TL4311 block diagram

TL430
TL430

Other


Data Sheet

Negotiable
TL430CLP
TL430CLP

Texas Instruments

Voltage & Current References Adjustable Shunt Regulator

Data Sheet

0-1: $0.97
1-25: $0.77
25-100: $0.68
100-250: $0.60
TL430CLPE3
TL430CLPE3

Texas Instruments

Voltage & Current References Adjustable Shunt Regulator

Data Sheet

0-1: $0.88
1-25: $0.70
25-100: $0.64
100-250: $0.56
TL430CLPR
TL430CLPR

Texas Instruments

Voltage & Current References Adjustable Shunt Regulator

Data Sheet

0-1390: $0.34
1390-2000: $0.31
2000-5000: $0.30
5000-10000: $0.29
TL430CLPRE3
TL430CLPRE3

Texas Instruments

Voltage & Current References Adjustable Shunt Regulator

Data Sheet

0-1390: $0.34
1390-2000: $0.31
2000-5000: $0.30
5000-10000: $0.29
