Product Summary
The TD62083AP is a high-voltage, high-current darlington driver comprised of eight NP darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications of the TD62083AP include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
TD62083AP absolute maximum ratings: (1)Output sustaining voltage VCE (SUS): -0.5 to 50 V; (2)Output current IOUT: 500 mA/ch; (3)Input voltage VIN: -0.5 to 30 V; (4)Input current IIN: 25 mA; (5)Clamp diode reverse voltage VR: 50 V; (6)Clamp diode forward current IF: 500 mA; (7)Power dissipation PD APG: 1.47W, AFG: 0.96 W; (8)Operating temperature Topr: -40 to 85 ℃; (9)Storage temperature Tstg: -55 to 150 ℃.
Features
TD62083AP features: (1)Output clamp diodes; (2)Inputs compatible with various types of logic; (3)Package type-APG: DIP-18 pin; (4)Package type-AFG: SOP-18 pin.

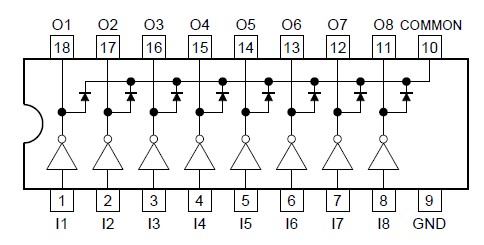

Diagrams
