Product Summary

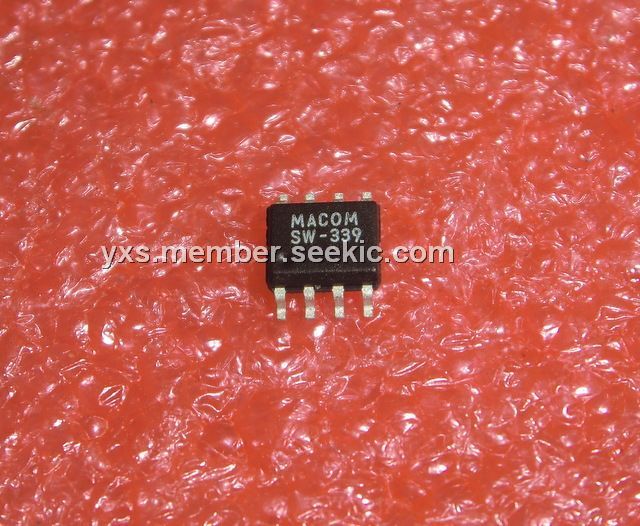

The SW-339 is a GaAs MMIC SPDT terminated switch. It is in a low cost SOIC 8-lead surface mount plastic package. The SW-339 is ideally suited for use where very low power consumption is required. Typical applications of the SW-339 include transmit/receive switching, switch matrices, and filter banks in systems such as: radio and cellular equipment, PCM, GPS, fiber optic modules, and other battery powered radio equipment.

Parametrics

SW-339 absolute maximum ratings: (1)Max. Input Power, 0.05 GHz: +27 dBm; 0.5 – 2.0 GHz: +34 dBm; (2)Control Voltage: +5V, -8.5V; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -65 to +150℃.

Features

SW-339 features: (1)Very Low Power Consumption: 75μW; (2)Low Insertion Loss: 0.5 dB; (3)High Isolation: 28 dB up to 2 GHz; (4)Very High Intercept Point: 46 dBm IP; (5)Nanosecond Switching Speed; (6)Temperature Range: -40 to +85℃; (7)Low Cost SOIC8 Plastic Package; (8)Tape and Reel Packaging Available.

Diagrams

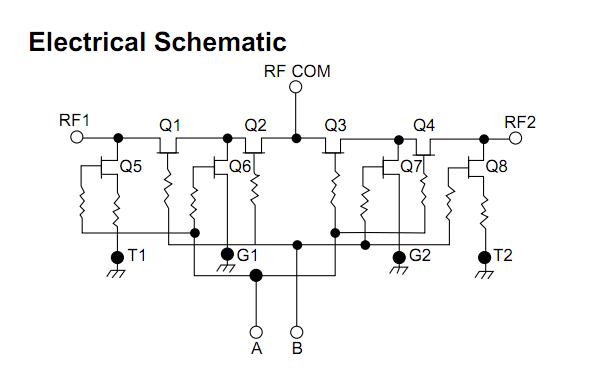

SW-339 schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SW-339
SW-339

Other


Data Sheet

Negotiable
