Product Summary
The STS25NH3LL is a Power MOSFET for DC/DC conversion. This device utilizes the advanced design rules of ST’s proprietary STripFET technology. The innovative process coupled with unique metallization techniques makes it possible to produce the most advanced low voltage Power MOSFET in an SO-8 package. The STS25NH3LL is therefore suitable for demanding DC-DC converter applications where high efficiency at high output current is needed. The STS25NH3LL is suitable for Switching applications.
Parametrics
STS25NH3LL absolute maximum ratings: (1)VDS, Drain-source voltage (VGS = 0): 30 V; (2)VGS, Gate-source voltage: ±18 V; (3)ID, Drain current (continuous) at TC = 25℃: 25 A; (4)ID Drain current (continuous) at TC=100℃: 18 A; (5)IDM, Drain current (pulsed): 100 A; (6)PTOT, Total dissipation at TC = 25℃: 3.2 W.
Features
STS25NH3LL features: (1)Optimal RDS(on) × Qg trade off @ 4.5 V; (2)Conduction losses reduced; (3)Switching losses reduced.

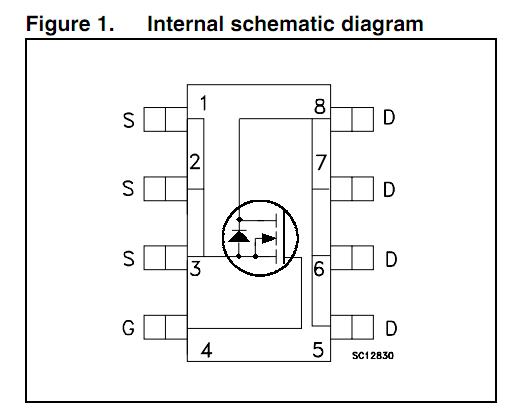

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

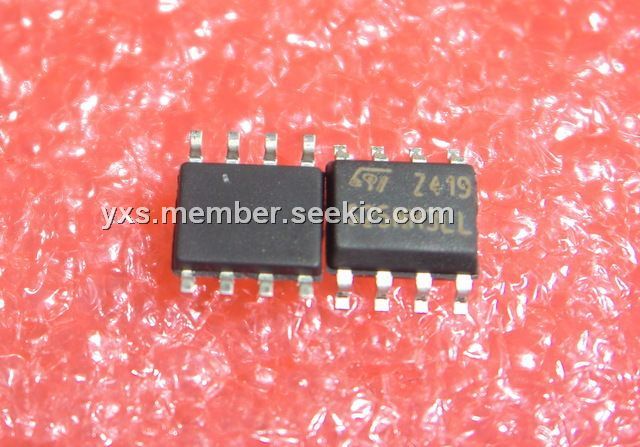

 STS25NH3LL |
STMicroelectronics |
MOSFET N-Ch 30 Volt 25 Amp |
Data Sheet |
Negotiable |
|
||||
|
STS25NH3LL-E |
STMicroelectronics |
MOSFET N-Ch 30 Volt 25 Amp |
Data Sheet |
Negotiable |
|
||||
