Product Summary
The SI3019-KT is an integrated direct access arrangement (DAA) with a programmable line interface to meet global telephone line requirements. Available in two 16-pin small outline packages, it eliminates the need for an analog front end (AFE), isolation transformer, relays, opto-isolators, and a 2- to 4-wire hybrid.
Parametrics
SI3019-KT absolute maximum ratings: (1)DC Supply Voltage: –0.5 to 3.6 V; (2)Input Current, Si3050 Digital Input Pins: ±10 mA; (3)Digital Input Voltage: –0.3 to (VD + 0.3) V; (4)Ambient Operating Temperature Range: –40 to 100 ℃; (5)Storage Temperature Range: –65 to 150 ℃.
Features
SI3019-KT features: (1)Programmable line interface; (2)80 dB dynamic range TX/RX paths; (3)Integrated codec and 2- to 4-wire hybrid; (4)Integrated ring detector; (5)Type I and II caller ID support; (6)Line voltage monitor; (7)Loop current monitor; (8)Polarity reversal detection; (9)Programmable digital gain; (10)Clock generation.

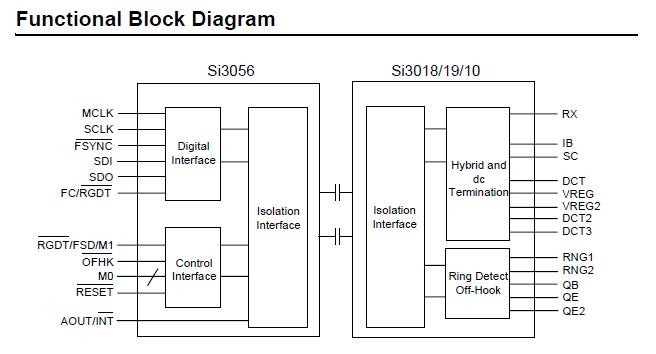

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

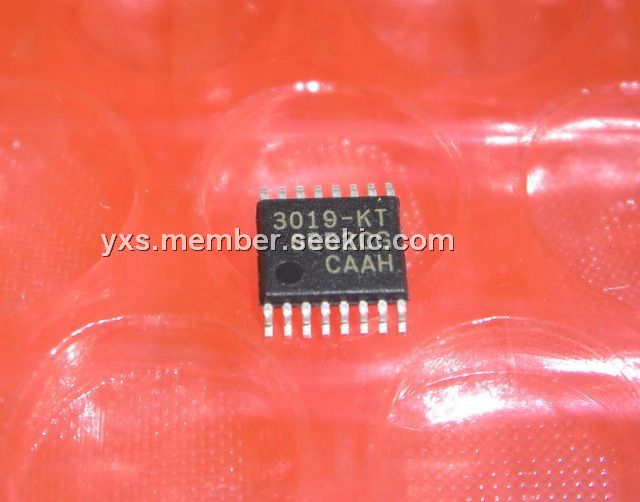

![]() Si3019-KT |
![]() Silicon Labs |
![]() Telecom Line Management ICs Si3050 Enhanced Glo Voice DAA Line-Side |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
