Product Summary

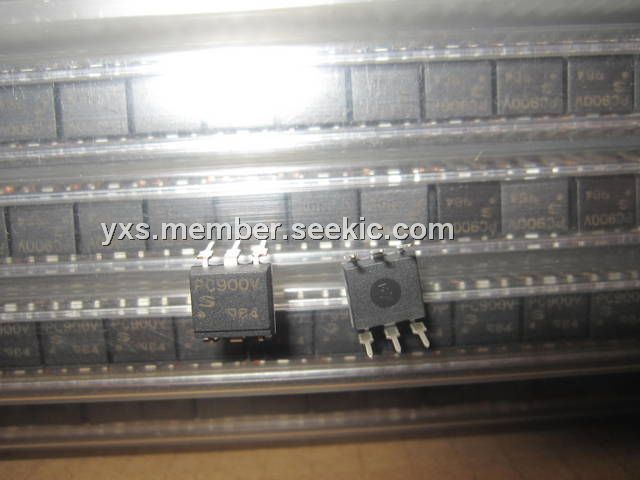

The PC900V is a Digital Output Type OPIC Photocoupler. The applications are Isolation between logic circuits, Logic level shifters, Line receivers, Replacements for relays and pulse transformers and Noise reduction.

Parametrics

PC900V absolute maximum ratings: (1)Total power dissipation, Ptot: 170 mW; (2)Isolation voltage, Viso: 5000Vrms; (3)Operating temperature, Topr: - 25 to + 85℃; (4)Storage temperature, Tstg: - 40 to + 125℃; (5)Soldering temperature, Tsol: 260℃.

Features

PC900V fetures: (1)TTL and LSTTL compatible output; (2)5High isolation voltage between input and output (Viso: 5 000V rms ); (3)High reliability type; (4)6Recognized by UL, file No. E64380; (5)Operating supply voltage VCC : 3 to 15V; (6)Normal OFF operation, open collector output.

Diagrams

PC900V connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC900V
PC900V
Other

Data Sheet
Negotiable
PC900V0NIPXF
PC900V0NIPXF
Sharp Microelectronics
High Speed Optocouplers SMT PC900V0NSZXF
Data Sheet
0-1: $0.67
1-10: $0.55
10-100: $0.44
100-500: $0.36
PC900V0NIZX
PC900V0NIZX

PHOTOCOUPLER OPIC DGTL OUT 6-SMD
Data Sheet
Negotiable
PC900V0NIZXF
PC900V0NIZXF
Sharp Microelectronics
High Speed Optocouplers SMT PC900V0NSZXF
Data Sheet
0-1: $0.63
1-10: $0.52
10-100: $0.42
100-500: $0.34
PC900V0NSZX
PC900V0NSZX

PHOTOCOUPLER OPIC DGTL OUT 6-DIP
Data Sheet
Negotiable
PC900V0NSZXF
PC900V0NSZXF
Sharp Microelectronics
High Speed Optocouplers Photocoupler DC In Digital out
Data Sheet
0-1: $0.47
1-10: $0.39
10-100: $0.31
100-500: $0.25
PC900V0YSZX
PC900V0YSZX

PHOTOCOUPLER OPIC DGTL VDE 6-DIP
Data Sheet
Negotiable
PC900V0YSZXF
PC900V0YSZXF
Sharp Microelectronics
High Speed Optocouplers VDE Approved PC900V0NSZXF
Data Sheet
0-1: $0.66
1-10: $0.55
10-100: $0.44
100-500: $0.36
