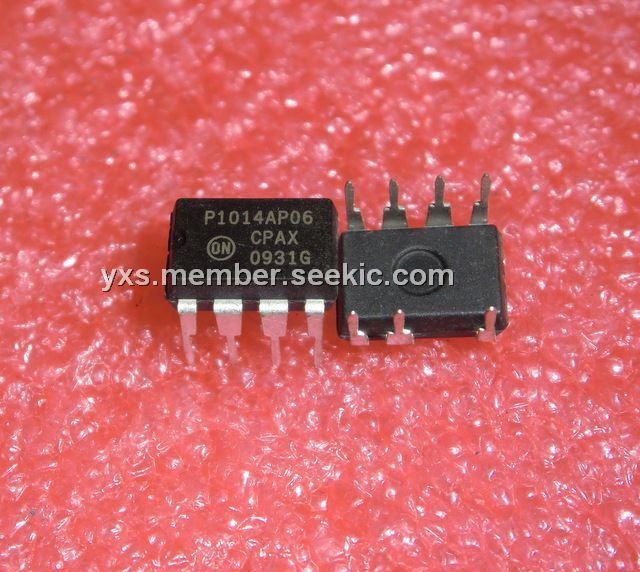

Self-Supplied Monolithic Switcher, SOT-223-4, -0.3 to 10 V, 15 mA, NCP1014ST65T3G, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~2.80

PartNumber:: P1014AP06

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-26

From Other Seller

Part Number:P1014AP06
US $1.60 - 2.80
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

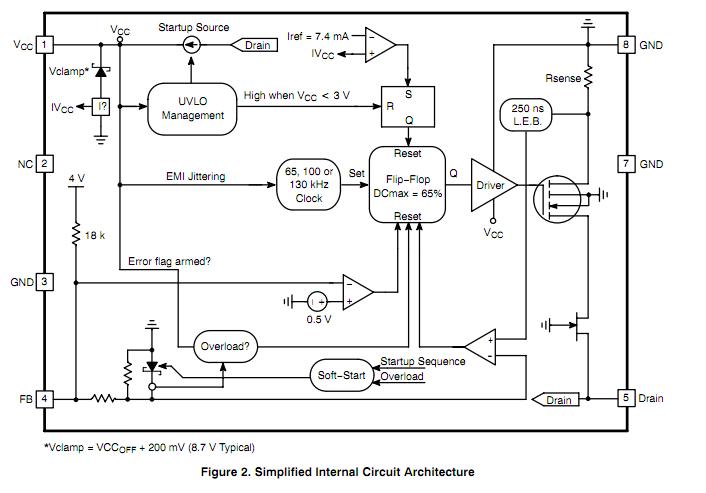

The P1014AP06 is a Self-Supplied Monolithic Switcher for Low Standby-Power Offline SMPS. integrates a fixed frequency current mode controller and a 700 V MOSFET. Housed in a PDIP 7, PDIP 7 Gull Wing, or SOT 223 package, the P1014AP06 offers everything needed to build a rugged and low cost power supply, including soft start, frequency jittering, short circuit protection, skip cycle, a maximum peak current setpoint and a Dynamic Self Supply (no need for an auxiliary winding). The P1014AP06 is suitable for Low Power AC/DC Adapters for Chargers and Auxiliary Power Supplies (USB, Appliances, TVs, etc.).

Parametrics

P1014AP06 absolute maximum ratings: (1)Power Supply Voltage on all pins, except Pin 5 (Drain), VCC: -0.3 to 10 V; (2)Drain Voltage: -0.3 to 700 V; (3)Drain Current Peak during Transformer Saturation, IDS(pk): 2 x Ilim max A; (4)Maximum Current into Pin 1 when Activating the 8.7 V Active Clamp, I_VCC: 15 mA; (5)Maximum Junction Temperature, TJmax, 150 ℃; (6)Storage Temperature Range: -60 to +150℃; (7)ESD Capability, Human Body Model (All pins except HV): 2.0 kV; (8)ESD Capability, Machine Model: 200 V.

Features

P1014AP06 features: (1)Built-in 700 V MOSFET with Typical RDSon of 11 ohm and 22 ohm; (2)Large Creepage Distance Between High-Voltage Pins; (3)Current-Mode Fixed Frequency Operation: 65 kHz -100 kHz - 130 kHz; (4)Skip-Cycle Operation at Low Peak Currents Only: No Acoustic Noise! (5)Dynamic Self-Supply, No Need for an Auxiliary Winding; (6)Internal 1.0 ms Soft-Start; (7)Latched Overvoltage Protection with Auxiliary Winding Operation; (8)Frequency Jittering for Better EMI Signature; (9)Auto-Recovery Internal Output Short-Circuit Protection; (10)Below 100 mW Standby Power if Auxiliary Winding is Used; (11)Internal Temperature Shutdown; (12)Direct Optocoupler Connection; (13)SPICE Models Available for TRANsient Analysis; (14)Pb-Free Packages are Available.
