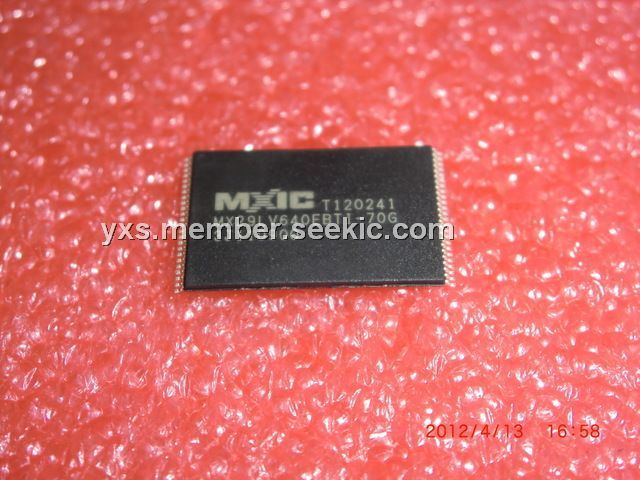

MX29LV640EBTI-70G

Product Summary

The MX29LV640EBTI-70G is a 64m-bit (8M x 8/4M x 16) single voltage 3V only flash memory. It provides two methods for chip unprotect. The chip unprotect operation unprotects all sectors within the device. The MX29LV640EBTI-70G is recommended to protect all sectors before activating chip unprotect mode. All sectors groups are unprotected when shipped from the factory. The MX29LV640EBTI-70G provides hardware sector protection against Program and Erase operation for protected sectors. The sector protect status can be read through Sector Protect Verify command.

Parametrics

MX29LV640EBTI-70G absolute maximum ratings: (1)Surrounding Temperature with Bias:-65℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage Range: Vcc:-0.5V to +4.0V, RESET#, A9, ACC and OE#:-0.5V to +10.5V, The other pins:-0.5V to Vcc +0.5V; (4)Output Short Circuit Current (less than one second):200 mA.

Features

MX29LV640EBTI-70G features: (1)8,388,608 x 8 / 4,194,304 x 16 switchable; (2)Sector Structure: 8KB(4KW) x 8 and 64KB(32KW) x 127; (3)Extra 128-word sector for security: Features factory locked and identifiable, and customer lockable; (4)Provides sector group protect function to prevent program or erase operation in the protected sector group; (5)Provides chip unprotect function to allow code changing; (6)Provides temporary sector group unprotect function for code changing in previously protected sector groups; (7)Single Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (8)Latch-up protected to 100mA from -1V to 1.5 x Vcc; (9)Low Vcc write inhibit : Vcc <= Vlko; (10)Compatible with JEDEC standard: Pinout and software compatible to single power supply Flash; (11)Ready/Busy# (RY/BY#) Output: Provides a hardware method of detecting program and erase operation completion; (12)Hardware Reset (RESET#) Input: Provides a hardware method to reset the internal state machine to read mode; (13)WP#/ACC input pin:Provides accelerated program capability.

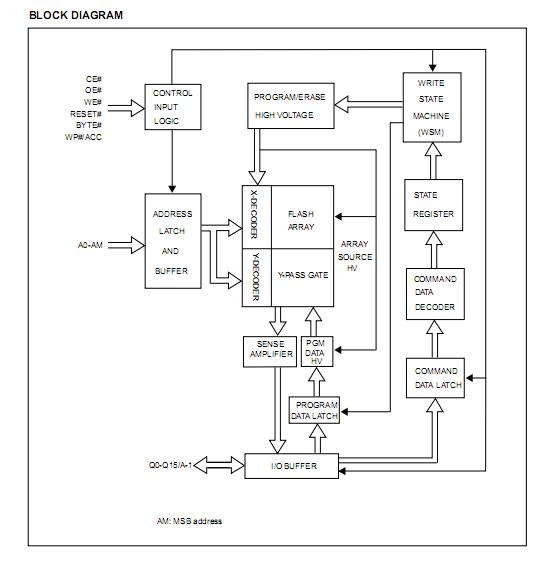

Diagrams
