Product Summary

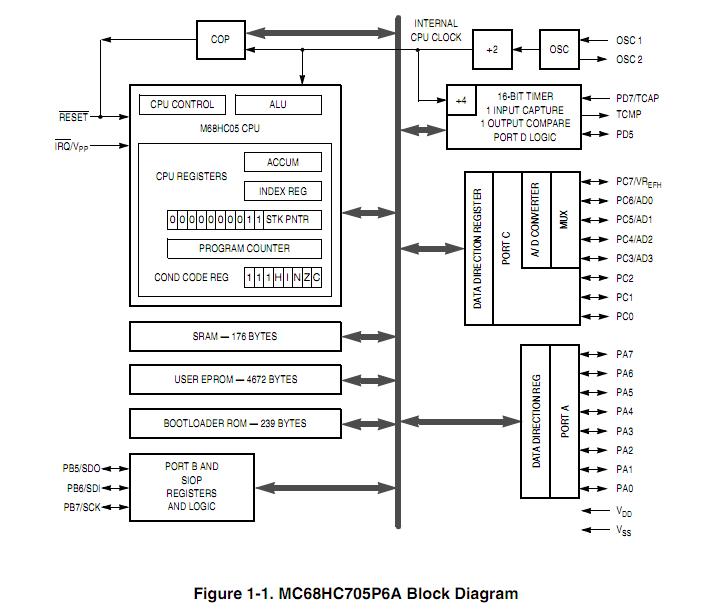

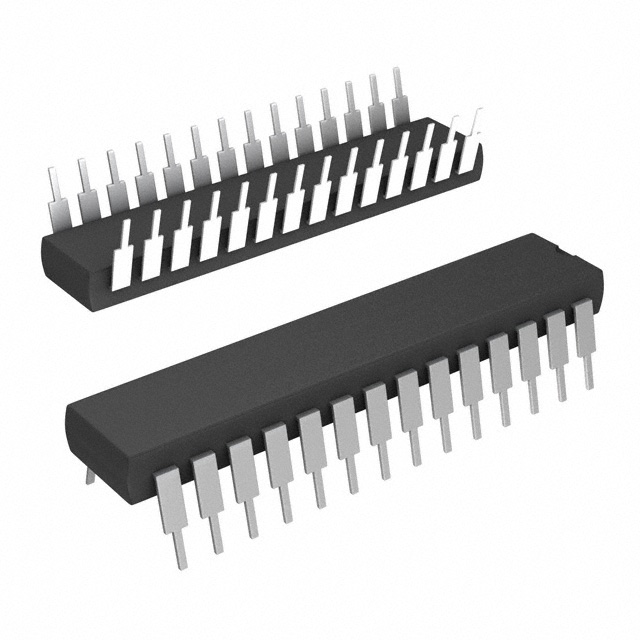

The MC68HC705P6ACP is an EPROM version of the MC68HC05P6 microcontroller. It is a low-cost combination of an M68HC05 Family microprocessor with a 4-channel, 8-bit analog-to-digital (A/D) converter, a 16-bit timer with output compare and input capture, a serial communications port (SIOP), and a computer operating properly (COP) watchdog timer. The MC68HC705P6ACP CPU core contains 176 bytes of RAM, 4672 bytes of user EPROM, 239 bytes of bootloader ROM, and 21 input/output (I/O) pins (20 bidirectional, 1 input-only). This device MC68HC705P6ACP is available in either a 28-pin plastic dual in-line (PDIP) or a 28-pin small outline integrated circuit (SOIC) package.

Parametrics

MC68HC705P6ACP absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +7.0 V; (2)Input voltage, VIn: VSS –0.3 to VDD +0.3V; (3)Bootloader mode (IRQ/VPP pin only), VIn: VSS –0.3 to 2VDD +0.3 V; (4)Current drain per pin excluding VDD and VSS, I: 25mA; (5)Storage temperature range, Tstg: –65 to +150℃.

Features

MC68HC705P6ACP features: (1)Low cost; (2)M68HC05 core; (3)28-pin SOIC, PDIP, or windowed DIP package; (4)4672 bytes of user EPROM (including 48 bytes of page zero EPROM and 16 bytes of user vectors); (5)?239 bytes of bootloader ROM; (6)176 bytes of on-chip RAM; (7)4-channel 8-bit A/D converter; (8)SIOP serial communications port; (9)16-bit timer with output compare and input capture; (10)20 bidirectional I/O lines and 1 input-only line; (11)PC0 and PC1 high-current outputs; (12)Single-chip, bootloader, and test modes; (13)Power-saving stop, halt, and wait modes.
