Product Summary

The MC68HC705KJ1CDW is a HCMOS Microcontroller Unit.

Parametrics

MC68HC705KJ1CDW absolute maximum ratings: (1)Supply Voltage VDD: –0.3 to +7.0 V; (2)Current Drain per Pin (Excluding VDD, VSS): I25mA; (3)Input Voltage VIn: VSS – 0.3 to VDD + 0.3 V; (4)IRQ/VPP Pin VPP: VSS – 0.3 to 2 × VDD + 0.3V; (5)Storage Temperature Range TSTG:–65 to +150℃.

Features

MC68HC705KJ1CDW features: (1)Robust Noise Immunity; (2)4.0-MHz Internal Operating Frequency at 5.0 V; (3)1240 Bytes of EPROM/OTPROM (Electrically Programmablen Read-Only Memory/One-Time Programmable Read-Only Memory), Including Eight Bytes for User Vectors; (4)64 Bytes of User RAM.

Diagrams

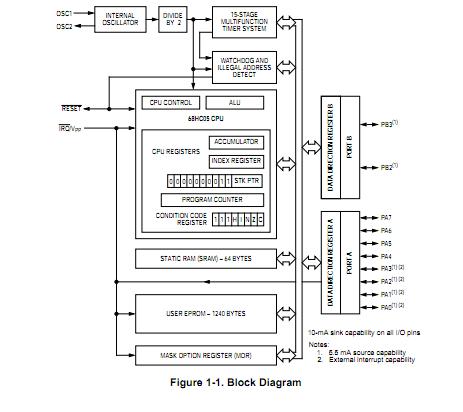

MC68HC705KJ1CDW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC68HC705KJ1CDW
MC68HC705KJ1CDW

Freescale Semiconductor

8-bit Microcontrollers (MCU) 8 Bit 4MHz

Data Sheet

Negotiable
