Product Summary

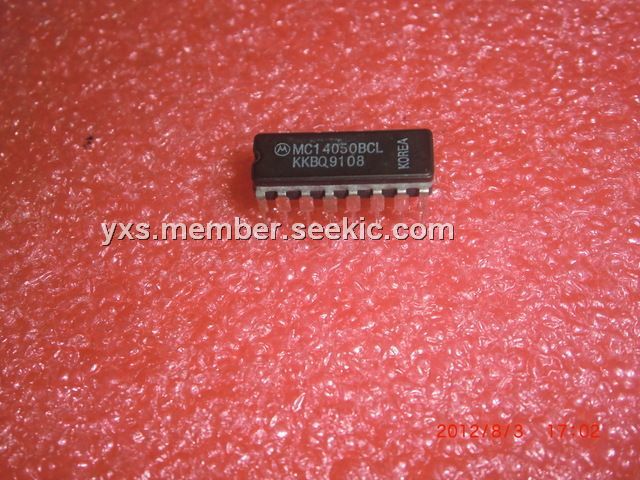

The 57100022085258 is an Noninverting Hex Buffer. It is constructed with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure. The device finds primary use where low power dissipation and/or high noise immunity is desired. The MC14050BCL provides logic level conversion using only one supply voltage, VDD. The input-signal high level (VIH) can exceed the VDD supply voltage for logic level conversions. Two TTL/DTL loads can be driven when the MC14050BCL is used as a CMOS-to-TTL/DTL converter(VDD = 5.0 V, VOL≤ 0.4 V, IOL ≥ 3.2 mA).
Parametrics
57100022085258 absolute maximum ratings: (1)VDD DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin Input Voltage Range (DC or Transient): -0.5 to +18.0 V; (3)Vout Output Voltage Range (DC or Transient): -0.5 to VDD + 0.5 V; (4)Iin Input Current (DC or Transient) per Pin: ±10 mA; (5)Iout Output Current (DC or Transient) per Pin: ±45 mA; (6)PD Power Dissipation, per Package(Plastic): 825mW; (SOIC): 740mW; (7)TA Ambient Temperature Range: -55 to +125 ℃; (8)Tstg Storage Temperature Range: -65 to +150 ℃; (9)TL Lead Temperature (8.Second Soldering): 260 ℃.
Features
57100022085258 features: (1)High Source and Sink Currents; (2)High-to-Low Level Converter; (3)Supply Voltage Range = 3.0 V to 18 V; (4)VIN can exceed VDD; (5)Meets JEDEC B Specifications; (6)Improved ESD Protection On All Inputs; (7)Pb-Free Packages are Available.

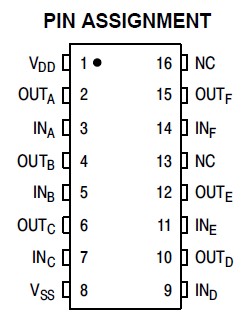

Diagrams
 |
