Product Summary
The MC14011B is a B-Suffix Series CMOS Gate constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Its primary use is where low power dissipation and/or high noise immunity is desired.
Parametrics
MC14011B absolute maximum ratings: (1)VDD DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout Input or Output Voltage Range (DC or Transient): -0.5 to VDD + 0.5 V; (3)Iin, Iout Input or Output Current (DC or Transient) per Pin: ±10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)TA Ambient Temperature Range: -55 to +125℃; (6)Tstg Storage Temperature Range: -65 to +150℃; (7)TL Lead Temperature (8-Second Soldering): 260℃.
Features
MC14011B features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)All Outputs Buffered; (3)Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range.; (4)Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; (5)Pin-for-Pin Replacements for Corresponding CD4000 Series B Suffix Devices; (6)Pb?Free Packages are Available.

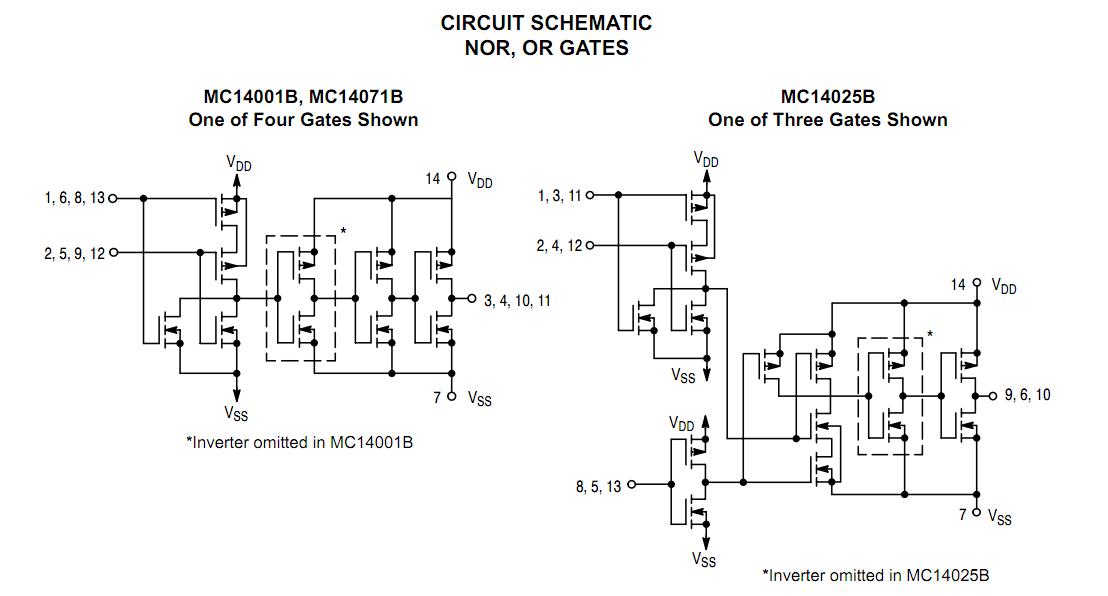

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14011B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
MC14011BCP |
ON Semiconductor |
IC GATE NAND QUAD CMOS 14DIP |
Data Sheet |
|
|
||||||||||||||||||||||
 |
MC14011BCPG |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NAND |
Data Sheet |
|
|
||||||||||||||||||||||
 |
MC14011BDG |
|
IC GATE NAND QUAD 2INPUT 14-SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
|
MC14011BDR2 |
|
IC GATE NAND QUAD CMOS 14SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
|
MC14011BD |
ON Semiconductor |
IC GATE NAND QUAD 2INPUT 14-SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
|
MC14011BDTR2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NAND |
Data Sheet |
|
|
||||||||||||||||||||||
|
MC14011BDR2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NAND |
Data Sheet |
|
|
||||||||||||||||||||||
