Product Summary

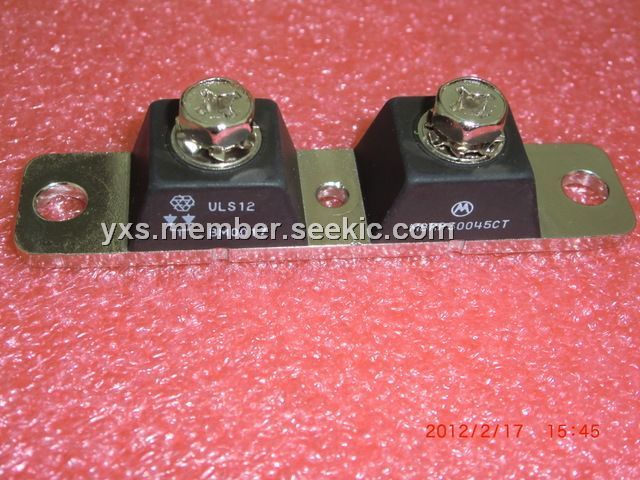

The MBRP30045CT is a power rectifier using the Schottky Barrier principle with a platinum barrier metal.
Parametrics
MBRP30045CT absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 45Volts; (2)Average Rectified Forward Current Per Device, IF(AV): 300Amps; (3)Peak Repetitive Forward Current, IFRM: 300 Amps; (4)Non–Repetitive Peak Surge Current, IFSM: 2500 Amps; (5)Peak Repetitive Reverse Current, IRRM: 2.0 Amps; (6)Operating Junction Temperature, TJ: -55 to +175℃; (7)Storage Temperature, Tstg: -55 to +150℃; (8)Voltage Rate of Change (Rated VR), dv/dt: 10000 V/μs.
Features
MBRP30045CT features: (1)Dual Diode Construction - May Be Paralleled for Higher Current Output; (2)Guardring for Stress Protection; (3)Low Forward Voltage; (4)175℃ Operating Junction Temperature; (5)Guaranteed Reverse Avalanche.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MBRP30045CT |
![]() ON Semiconductor |
![]() Schottky (Diodes & Rectifiers) 300A 45V |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() MBRP30045CTG |
![]() ON Semiconductor |
![]() Schottky (Diodes & Rectifiers) 300A 45V |
![]() Data Sheet |
![]() Negotiable |
|
