Product Summary

The MAX1472AKA+T is a crystal-referenced phase-locked loop (PLL) VHF/UHF transmitter designed to transmit OOK/ASK data in the 300MHz to 450MHz frequency range. The MAX1472AKA+T supports data rates up to 100kbps, and adjustable output power to more than +10dBm into a 50Ω load. The crystal-based architecture of the MAX1472AKA+T eliminates many of the common problems with SAW transmitters by providing greater modulation depth, faster frequency settling, higher tolerance of the transmit frequency, and reduced temperature dependence. Combined, these improvements enable better overall receiver performance when using a superheterodyne receiver such as the MAX1470 or MAX1473. The applications of the MAX1472AKA+T are (1)Remote Keyless Entry; (2)RF Remote Controls; (3)Tire Pressure Monitoring; (4)Security Systems; (5)Radio-Controlled Toys; (6)Wireless Game Consoles; (7)Wireless Computer Peripherals; (8)Wireless Sensors.

Parametrics

MAX1472AKA+T absolute maixmum ratings: (1)VDD to GND: -0.3V to +4.0V; (2)All Other Pins to GND: -0.3V to (VDD + 0.3V); (3)Continuous Power Dissipation: 714mW; (4)Operating Temperature Range: -40 to +125℃; (5)Storage Temperature Range: -60 to +150℃; (6)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1472AKA+T features: (1)2.1V to 3.6V Single-Supply Operation; (2)Low 5.3mA Operating Supply Current; (3)Supports ASK with 90dB Modulation Depth; (4)Output Power Adjustable to More than +10dBm; (5)Uses Small Low-Cost Crystal; (6)Small 3mm × 3mm 8-Pin SOT23 Package; (7)Fast-On Oscillator 220μs Startup Time.

Diagrams

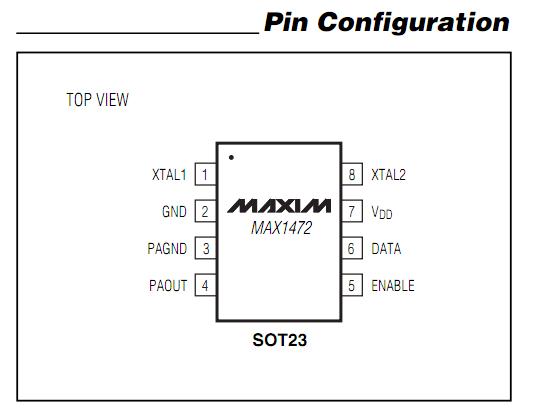

MAX1472AKA+T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX1472AKA+T
MAX1472AKA+T
Maxim Integrated Products
RF Transmitter 300-450MHz Low-P Crystal-Based ASK
Data Sheet
0-1: $1.93
1-25: $1.45
25-50: $1.39
50-100: $1.27
