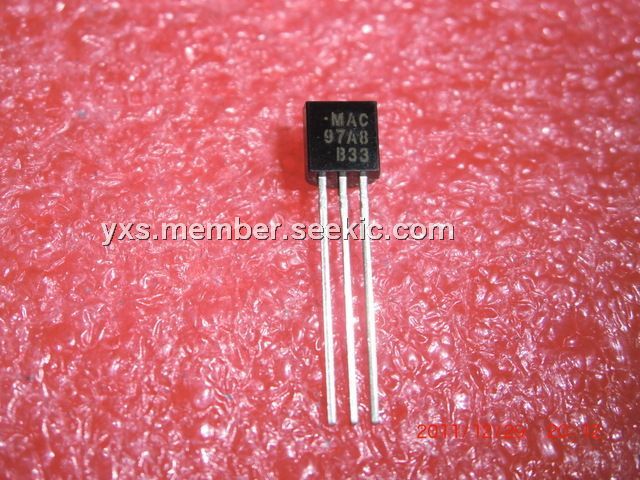

Product Summary

The MAC97A8 is a Logic level sensitive gate triac intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. The applicaitons are General purpose bidirectional switching, Phase control applications and Solid state relays.

Parametrics

MAC97A8 absolute maximum ratings: (1)IGM, gate current: 1A; (2)VGM, gate voltage: 5 V; (3)PGM, gate power: 5W; (4)PG(AV), average gate power: 0.1 W; (5)Tstg, storage temperature: -40 to +150℃; (6)Tj, operating junction temperature: -40 to +125 ℃.

Features

MAC97A8 features: (1)Blocking voltage to 600 V (MAC97A8); (2)RMS on-state current to 0.6 A; (3)Sensitive gate in all four quadrants; (4)Low cost package.

Diagrams

MAC97A8 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAC97A8
MAC97A8
ON Semiconductor
Triacs THY .6A 600V TRIAC
Data Sheet
Negotiable
MAC97A8,116
MAC97A8,116
NXP Semiconductors
Triacs TAPERA TRIAC
Data Sheet
0-5600: $0.06
5600-6000: $0.06
6000-10000: $0.06
10000-12000: $0.05
MAC97A8,412
MAC97A8,412
NXP Semiconductors
Triacs 600V .6A
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.12
MAC97A8/DG,116
MAC97A8/DG,116
NXP Semiconductors
Triacs 600V BI-DIRECT 0.6A
Data Sheet
0-2000: $0.06
2000-6500: $0.06
6500-10000: $0.06
MAC97A8/DG,412
MAC97A8/DG,412
NXP Semiconductors
Triacs 4Q Triac
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.12
MAC97A8G
MAC97A8G
ON Semiconductor
Triacs THY .6A 600V TRIAC
Data Sheet
0-1: $0.15
1-25: $0.13
25-100: $0.10
100-500: $0.09
MAC97A8RL1
MAC97A8RL1
ON Semiconductor
Triacs THY .6A 600V TRIAC
Data Sheet
Negotiable
MAC97A8RLRM
MAC97A8RLRM
ON Semiconductor
Triacs THY .6A 600V TRIAC
Data Sheet
Negotiable
