Product Summary

The M063A is a DC to DC Converter. The M063A is a monolithic control circuit containing the primary functions required for DC to DC converters. The M063A consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. The M063A is specifically designed to be incorporated in Step–Down and Step–Up and Voltage–Inverting applications with a minimum number of external components.

Parametrics

M063A absolute maximum ratings: (1)Power Supply Voltage VCC: 40 Vdc; (2)Comparator Input Voltage Range VIR: –0.3 to +40 Vdc; (3)Switch Collector Voltage VC(switch) 40 Vdc; (4)Switch Emitter Voltage (VPin 1 = 40 V) VE(switch) 40 Vdc; (5)Switch Collector to Emitter Voltage VCE(switch) 40 Vdc; (6)Driver Collector Voltage VC(driver) 40 Vdc; (7)Driver Collector Current (Note 1.) IC(driver) 100 mA; (8)Switch Current ISW 1.5 A.

Features

M063A features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference.

Diagrams

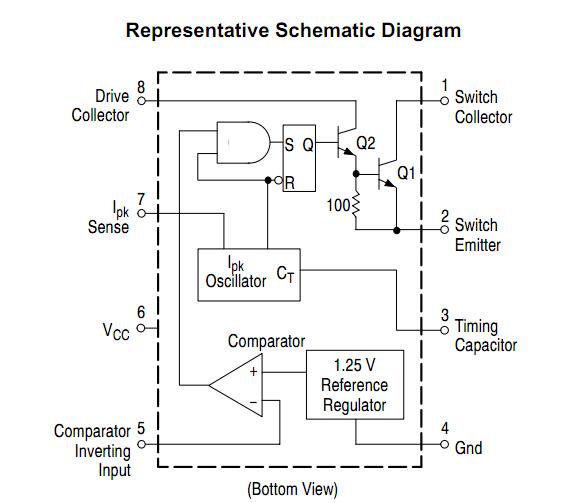

M063A block diagram
