Product Summary

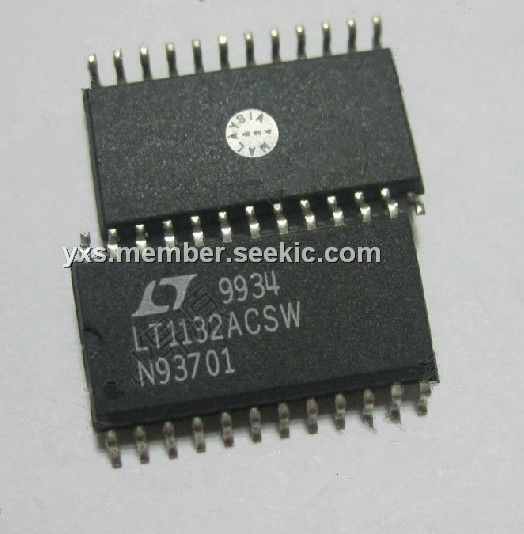

The LT1132ACSW is an Advanced Low Power 5V RS232 Driver/Receiver with Small Capacitors. The LT1132ACSW features special bipolar construction techniques which protect the drivers and receivers beyond the fault conditions stipulated for RS232. Driver outputs and receiver inputs can be shorted to ±30V without damaging the device or the power supply generator. In addition, the RS232 I/O pins are resilient to multiple ±10kV ESD strikes. An advanced driver output stage operates up to 250kbaud while driving heavy capacitive loads. Supply current is typically 12mA, competitive with CMOS devices.
Parametrics
LT1132ACSW absolute maximum ratings: (1)Supply Voltage (VCC): 6V; (2)V+: 13.2V; (3)V–: –13.2V; (4)Input Voltage, Driver: V– to V+; Receiver: – 30V to 30V; On/Off Pin: –0.3V to 12V; Driver Disable Pin: –0.3V to (VCC + 0.3V); (5)Output Voltage, Driver: – 30V to 30V; Receiver: – 0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, V+: 30 sec; V–: 30 sec; (7)Operating Temperature Range: 0 to 70℃; (8)Storage Temperature Range: – 65 to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1132ACSW features: (1)ESD Protection over ±10kV; (2)Uses Small Capacitors: 0.1μF, 0.2μF; (3)1μA Supply Current in SHUTDOWN; (4)120kBaud Operation for RL = 3k, CL = 2500pF; (5)250kBaud Operation for RL = 3k, CL = 1000pF; (6)CMOS Comparable Low Power; (7)Easy PC Layout: Flowthrough Architecture; (8)Rugged Bipolar Design: Absolutely No Latchup; (9)Outputs Assume a High Impedance State When Off or Powered Down; (10)Improved Protection: RS232 I/O Lines Can Be Forced to ±30V Without Damage; (11)Output Overvoltage Does Not Force Current Back into Supplies; (12)Available in SO and SSOP Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1132ACSW |
|
IC 5DRV/3RCV RS232 5V 24-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1132ACSW#PBF |
|
IC 5DRV/3RCV RS232 5V 24-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1132ACSW#TR |
|
IC TXRX 5V RS232 LP CAPS 24SOIC |
Data Sheet |
|
|
||||||||||
|
LT1132ACSW#TRPBF |
|
IC 5DRV/3RCV RS232 5V 24-SOIC |
Data Sheet |
|
|
||||||||||
