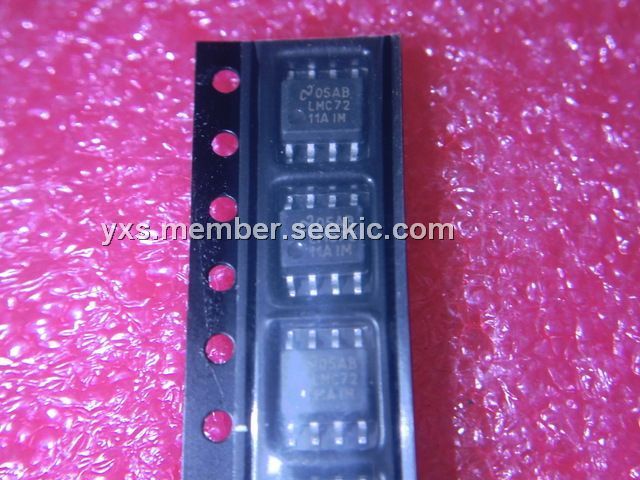

LMC7211AIM

micropower CMOS comparator, SOP8, 16V, 40 mA, LMC7211AIM

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.63~1.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.63~1.56

PartNumber:: LMC7211AIM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:LMC7211AIM
US $0.63 - 1.56
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LMC7211AIM is a micropower CMOS comparator available in the space saving SOT23-5 package. This makes the comparator ideal for space and weight critical designs. The device is supplied in two offset voltage grades, 5 mV and 15 mV. The rail-to-rail input voltage makes the LMC7211AIM a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits. The applications of the LMC7211AIM include: Battery Powered Products, Notebooks and PDAs, PCMCIA cards, Mobile Communications, Alarm and Security circuits, Direct Sensor Interface, Replaces amplifiers used as comparators with better performance and lower current.

Parametrics

LMC7211AIM absolute maximum ratings: (1)ESD Tolerance: 2 kV; (2)Differential Input Voltage: (VCC) +0.3V to (-VCC)-0.3V; (3)Voltage at Input/Output Pin: (VCC) + 0.3V to (-VCC)-0.3V; (4)Supply Voltage (V+–V-): 16V; (5)Current at Input Pin: ±5 mA; (6)Current at Output Pin: ±30 mA; (7)Current at Power Supply Pin: 40 mA; (8)Lead Temperature(soldering, 10 sec): 260℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.

Features

LMC7211AIM features: (1)Tiny SOT 23-5 package saves space; (2)Package is less than 1.43 mm thick; (3)Guaranteed specs at 2.7V, 5V, 15V supplies; (4)Typical supply current 7 μA at 5V; (5)Response time of 4 μs at 5V; (6)LMC7211—push-pull output; (7)Input common-mode range beyond V- and V+; (8)Low input current.
