Product Summary

The LM4562NA is an ultra-low distortion, low noise, high slew rate operational amplifier, which is optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LM4562NA audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The applications of the LM4562NA include Ultra high quality audio amplification, High fidelity preamplifiers, High fidelity multimedia, State of the art phono pre amps, High performance professional audio, High fidelity equalization and crossover networks, High performance line drivers, High performance line receivers, High fidelity active filters.

Parametrics

LM4562NA absolute maximum ratings: (1)Power Supply Voltage (VS = V+ - V-): 36V; (2)Storage Temperature: -65℃ to 150℃; (3)Input Voltage: (V-) - 0.7V to (V+) + 0.7V; (4)Output Short Circuit: Continuous; (5)Power Dissipation: Internally Limited; (6)ESD Susceptibility: 2000V; (7)ESD Susceptibility: Pins 1, 4, 7 and 8: 200V, Pins 2, 3, 5 and 6: 100V; (8)Junction Temperature: 150℃; (9)Thermal Resistance: θJA (SO): 145℃/W, θJA (NA): 102℃/W, θJA (HA): 150℃/W, θJC (HA): 35℃/W; (10)Temperature Range: –40℃ ≤ TA ≤ 85℃ at TMIN ≤ TA ≤ TMAX; (11)Supply Voltage Range: ±2.5V ≤ VS ≤ ± 17V.

Features

LM4562NA features: (1)Easily drives 600Ω loads; (2)Optimized for superior audio signal fidelity; (3)Output short circuit protection; (4)PSRR and CMRR exceed 120dB (typ); (5)SOIC, DIP, TO-99 metal can packages.

Diagrams

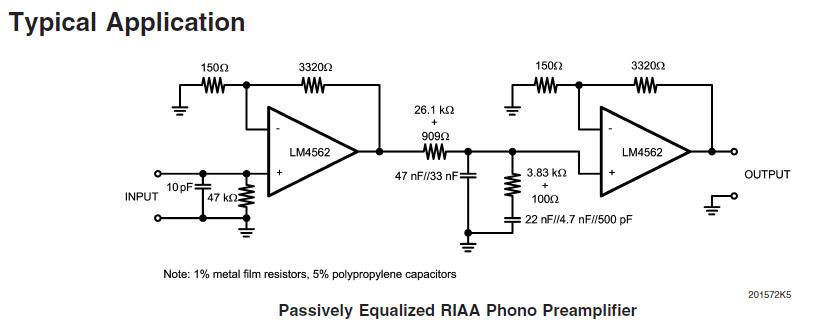

LM4562NA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM4562NA/NOPB
LM4562NA/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps DUAL HI PERF,HI FI AUDIO OP AMP
Data Sheet
0-1: $1.85
1-25: $1.49
25-100: $1.35
100-250: $1.22
