Product Summary
The LA6560 is a 5-channel driver (BTL : 4-channel, H bridge : 1-channel) for CD players.
Parametrics
LA6560 absolute maximum ratings: (1)Supply voltage VCC max: 14 V; (2)Independent IC: 2.0 W; (3)Maximum output current IO max: 1 to 4. 1 A; (4)Maximum input voltage VINB: 13 V; (5)MUTE pin voltage VMUTE: 13 V; (6)Operating temperature Topr: -30 to +85℃; (7)Storage temperature Tstg: -55 to +150℃.
Features
LA6560 features: (1)Power amplifier 5-channel built-in. (Bridge-connection (BTL) : 4-channel, H bridge : 1-channel); (2)IO max 1A; (3)Level shift circuit built-in (except H bridge); (4)Mute circuit (output ON/OFF) built-in. (Operable with BTL AMP and not operable for the H bridge of 5VREG); (5)5V regulator built-in (external PNP transistor); (6)With VREF changeover function (H : external, L : internal (2.5V) selected); (7)Overheat protection circuit (thermal shutdown) built-in.

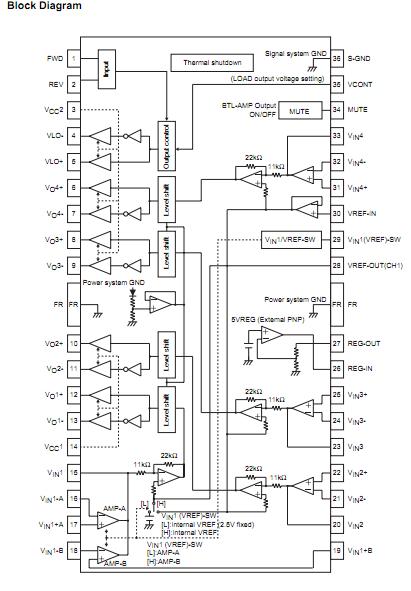

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LA6560 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
