K4H561638H-UCCC

268,435,456 bits, double data rate synchronous DRAM, 50 mA, -0.5 to 3.6 V, BGA, Double-data-rate architecture

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.80

PartNumber:: K4H561638H-UCCC

Brand:: Samsung semiconductor - SAMSUNG | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:K4H561638H-UCCC
US $1.50 - 2.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

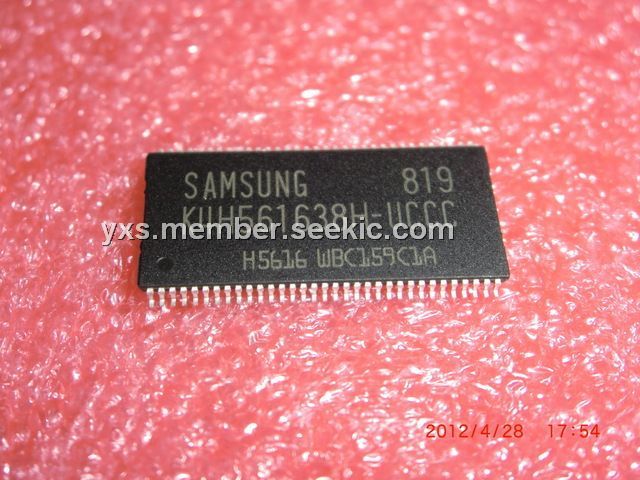

The K4H561638H-UCCC is a 268,435,456 bits of double data rate synchronous DRAM organized as 4x 4,194,304 words by 16bits, fabricated with high performance CMOS technology. The K4H561638H-UCCC features with Data Strobe allow extremely high performance up to 333Mb/s per pin. I/O transactions of the K4H561638H-UCCC are possible on both edges of DQS. Range of operating frequencies, programmable burst length and programmable latencies allow the device to be useful for a variety of high performance memory system applications.

Parametrics

K4K4H561638H-UCCC absolute maximum ratings: (1)Voltage on any pin relative to VSS, VIN, VOUT: -0.5 to 3.6 V; (2)Voltage on VDD & VDDQ supply relative to VSS, VDD, VDDQ: -1.0 to 3.6V; (3)Storage temperature, TSTG: -55 to +150℃; (4)Power dissipation, PD :1.5 W; (5)Short circuit current, I: 50 mA.

Features

K4H561638H-UCCC features: (1)VDD: 2.5V ± 0.2V, VDDQ : 2.5V ± 0.2V for DDR266, 333; (2)VDD: 2.6V ± 0.1V, VDDQ : 2.6V ± 0.1V for DDR400; (3)Double-data-rate architecture; two data transfers per clock cycle; (4)Bidirectional data strobe [L(U)DQS] (x16); (5)Four banks operation; (6)Differential clock inputs(CK and CK); (7)DLL aligns DQ and DQS transition with CK transition; (8)MRS cycle with address key programs; (9)All inputs except data & DM are sampled at the positive going edge of the system clock(CK); (10)Data I/O transactions on both edges of data strobe ; (11)Edge aligned data output, center aligned data input; (12)LDM,UDM for write masking only (x16); (13)Auto & Self refresh; (14)7.8us refresh interval(8K/64ms refresh); (15)Support Industrial Temp (-40 to 85℃); (16)Maximum burst refresh cycle : 8; (17)66pin TSOP II, 60Ball FBGA Pb-Free(RoHS compliant) package.
