IR2127

SOP8, single channel driver, IR2127, -0.3 to 625V, 1.0W, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.65

PartNumber:: IR2127

Brand:: International Rectifier - IR | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-17

From Other Seller

Part Number:IR2127
US $1.05 - 1.65
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

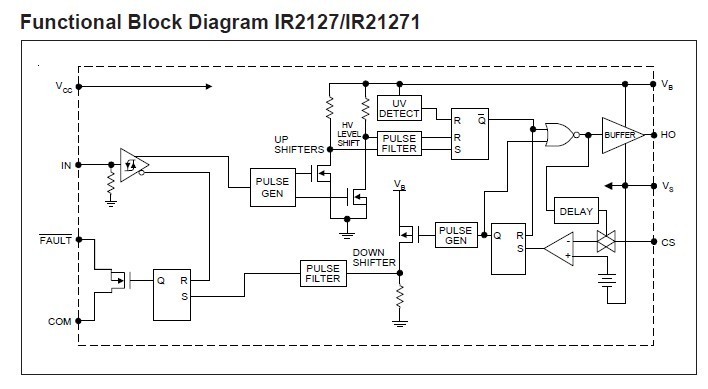

The IR2127 is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs. The IR2127 protection circuity detects over-current in the driven power transistor and terminates the gate drive voltage. An open drain FAULT signal is provided to indicate that an over-current shutdown has occurred. The IR2127 output driver features a high pulse current buffer stage designed for minimum crossconduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side or low side configuration which operates up to 600 volts.

Parametrics

IR2127 absolute Maximum Ratings: (1)High Side Floating Supply Voltage, VB: -0.3 to 625V; (2)High Side Floating Offset Voltage, VS: VB-25 to VB+0.3V; (3)High Side Floating Output Voltage, VHO: VS-0.3 to VB+0.3V; (4)Logic Supply Voltage, VCC: -0.3 to 25V; (5)Logic Input Voltage, VIN: -0.3 to VCC+0.3V; (6)FAULT Output Voltage, VFLT: -0.3 to VCC+0.3V; (7)Current Sense Voltage, VCS: VS-0.3 to VB+0.3V; (8)Allowable Offset Supply Voltage Transient, dVs/dt: 50V/ns ; (9)Package Power Dissipation @ TA ≤ +25℃ (8 Lead DIP), PD: 1.0W; (10)Thermal Resistance, Junction to Ambient (8 Lead DIP), RTHJA: 125℃/W ; (11)Junction Temperature, TJ: 150℃ ; (12)Storage Temperature, TS: -55 to 150℃; (13)Lead Temperature (Soldering, 10 seconds), TL: 300.

Features

IR2127 features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +600V; (3)Tolerant to negative transient voltage; (4)dV/dt immune; (5)Gate drive supply range from 10 to 20V; (6)Undervoltage lockout; (7)5V Schmitt-triggered input logic; (8)FAULT lead indicates shutdown has occured; (9)Output in phase with input.
