Product Summary
The HM628128ALFP-8 is a CMOS static RAM organized 128 kword × 8 bit. It realizes higher density, higher performance and low power consumption by employing 0.8 μm Hi-CMOS process technology. The HM628128ALFP-8 offers low power standby power dissipation; therefore, it is suitable for battery back-up systems. The HM628128ALFP-8, packaged in a 525-mil SOP (460-mil body SOP) or a 600-mil plastic DIP, or a 8 × 20mm TSOP with thickness of 1.2 mm, is available for high density mounting. TSOP package is suitable for cards, and reverse type TSOP is also provided.
Parametrics
HM628128ALFP-8 absolute maximum ratings: (1)Supply voltage relative to VSS, VCC: –0.5 to +7.0 V; (2)Voltage on any pin relative to VSS, VT: –0.5 *2 to VCC + 0.3V; (3)Power dissipation, PT: 1.0 W; (4)Operating temperature, Topr: 0 to +70℃; (5)Storage temperature, Tstg: –55 to +125℃; (6)Storage temperature under bias, Tbias: –10 to +85℃.
Features
HM628128ALFP-8 features: (1)High speed; (2)Low power; (3) Single 5 V supply; (4)Completely static memory No clock or timing strobe required; (5)Equal access and cycle times; (6)Common data input and output Three state output; (7)Directly TTL compatible All inputs and outputs; (8)Capability of battery back up operation 2 chip selection for battery back up.

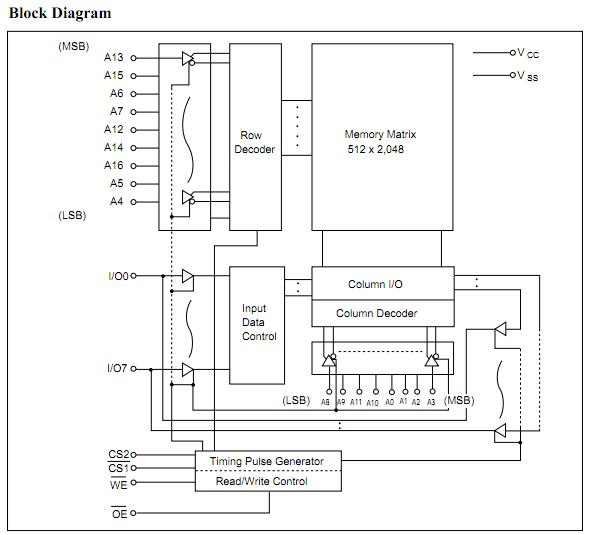

Diagrams
![]() |
