Product Summary

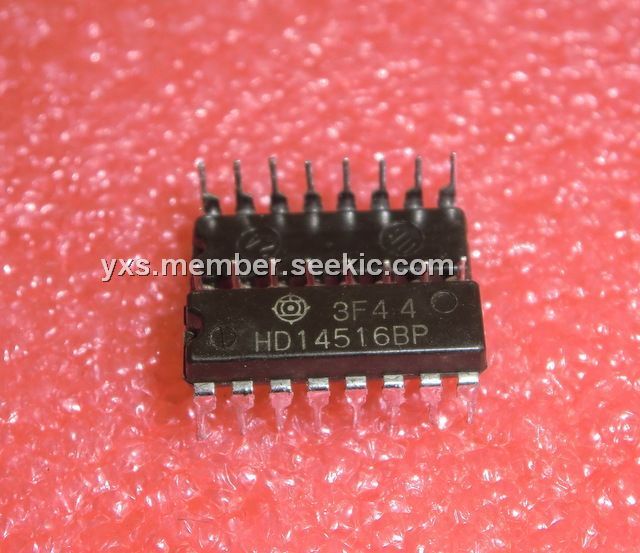

The HD14516BP is a binary up/down counter. The HD14516BP finds promary use where low power dissipation and/or high noise immunity is desired. THis binary presettable up/down conter may be used as a counting/frequency synthesizer, in A/D and D/A conversion, for up/down counting, for magnitude and sign generation, adn for difference counting.
Parametrics
HD14516BP absolute maximum ratings: (1)output voltage ,VOL: 5.0V; VOH: 10V; (2)input voltage, VIL: 5.0V; VIH: 10V; (3)input current, Iin: 15mA; (4)input capacitance, Cin: 5pF.
Features
HD14516BP features: (1)quiescent current=5nA/peak typ @5V; (2)supply votlage range=3V to 18V internally synchronous for high speed; (3)logic edge-clocked design; (4)6MHz counting rate; (5)single pin reset; (6)asynchronous preset enable operation; (7)capable of driving one low power schottky TTL load over the rated temeprature range.

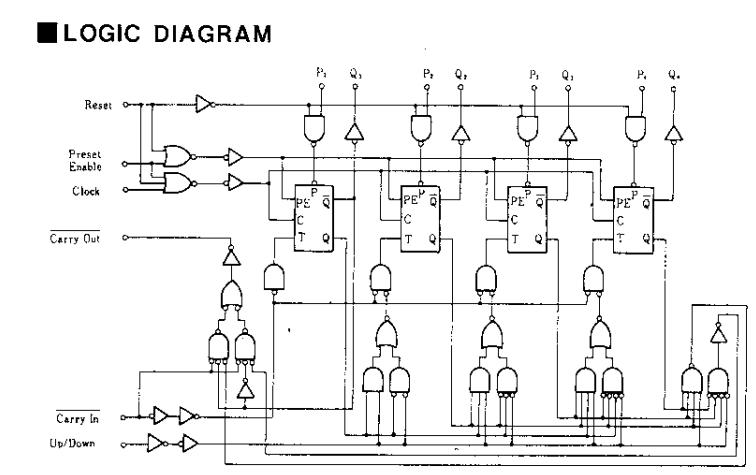

Diagrams
 |
 HD14000B |
