Product Summary

The FDMS9620S is a Dual N-Channel PowerTrench MOSFET. This device includes two specialized MOSFETs in a unique dual Power 56 package. The FDMS9620S is designed to provide an optimal Synchronous Buck power stage in terms of efficiency and PCB utilization. The low switching loss High Side MOSFET is complemented by a Low Conduction Loss Low Side SyncFET. Applications of the FDMS9620S are Synchronous Buck Converter for: Notebook System Power and General Purpose Point of Load.

Parametrics

FDMS9620S absolute maximum ratings: (1)VDS Drain to Source Voltage: 30 V; (2)VGS Gate to Source Voltage: ±20 V; (3)ID Drain Current: 16A; (4)PD Power Dissipation: 2.5W; (5)TJ, TSTG Operating and Storage Junction Temperature Range: -55 to +150℃.

Features

FDMS9620S features: (1)Max rDS(on) = 13mΩ at VGS = 10V, ID = 10A; (2)Max rDS(on) = 17mΩ at VGS = 4.5V, ID = 8.5A; (3)Low Qg high side MOSFET; (4)Low rDS(on) low side MOSFET ; (5)Thermally efficient dual Power 56 package; (6)Pinout optimized for simple PCB design; (7)RoHS Compliant.

Diagrams

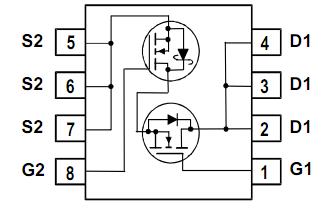

FDMS9620S block diagram
