Product Summary

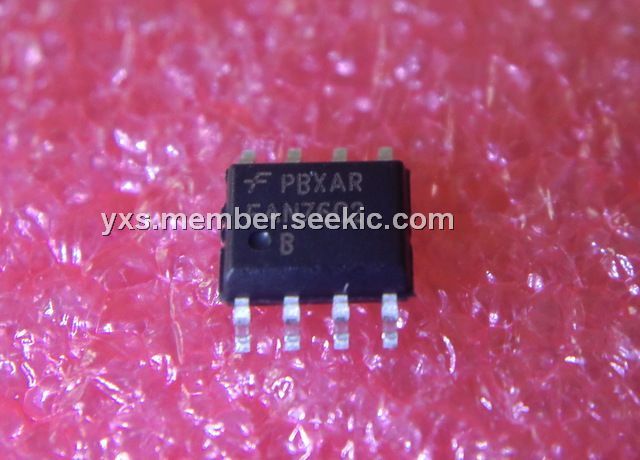

The FAN7602BMX is a green current-mode PWM controller. It is specially designed for off-line adapter applications; DVDP, VCR, LCD monitor applications; and auxiliary power supplies. The internal high-voltage start-up switch and the burst- mode operation reduce the power loss in standby mode. As a result, it is possible to supply 0.5W load, limiting the input power under 1W when the input line voltage is 265VAC. On no-load condition, input power is under 0.3W. The applications of the FAN7602BMX are Adapter, LCD Monitor Power and Auxiliary Power Supply.
Parametrics
FAN7602BMX absolute maximum ratings: (1)VCC Supply Voltage: 20 V; (2)IOH, IOL Peak Drive Output Current: +450/-600 mA; (3)VCS/FB CS/FB Input Voltage: -0.3 to 20 V; (4)VLUVP LUVP Input Voltage: -0.3 to 10 V; (5)VLatch Latch/Plimit Input Voltage: -0.3 to 10 V; (6)VSTR VSTR Input Voltage: 600 V; (7)TJ Operating Junction Temperature: 150℃; (8)TA Operating Temperature Range: -25 to 125℃; (9)TSTG Storage Temperature Range: -55 to 150℃; (10)PD Power Dissipation: 1.2 W; (11)VESD_HBM ESD Capability, Human Body Model: 2.0 kV; (12)VESD_MM ESD Capability, Machine Model: 200 V; (13)VESD_CDM ESD Capability, Charged Device Model: 500 V.
Features
FAN7602BMX features: (1)Green Current-Mode PWM Control; (2)Fixed 65kHz Operation; (3)Internal High-Voltage Start-up Switch; (4)Burst-Mode Operation; (5)Line Voltage Feedforward to Limit Maximum Power; (6)Line Under-Voltage Protection; (7)Latch Protection & Internal Soft-Start (10ms) Function; (8)Overload Protection; (9)Over-Voltage Protection; (10)Low Operation Current: 1mA Typical; (11)8-pin DIP/SOP.

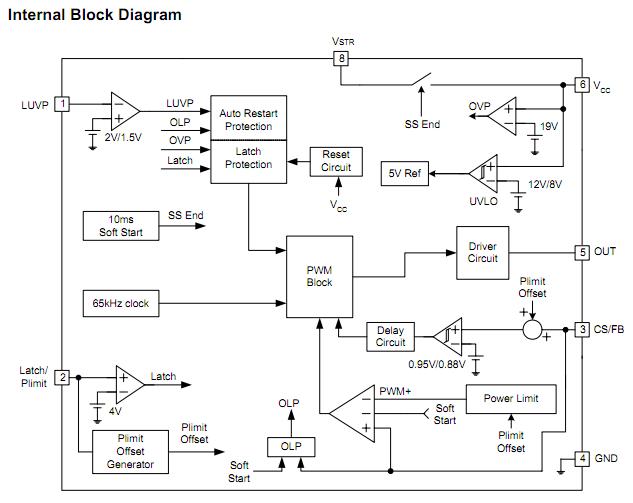

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN7602BMX |
Fairchild Semiconductor |
Switching Converters, Regulators & Controllers GRN MODE PWM CNTRL |
Data Sheet |
|
|
||||||||||||
