FAN7530MX

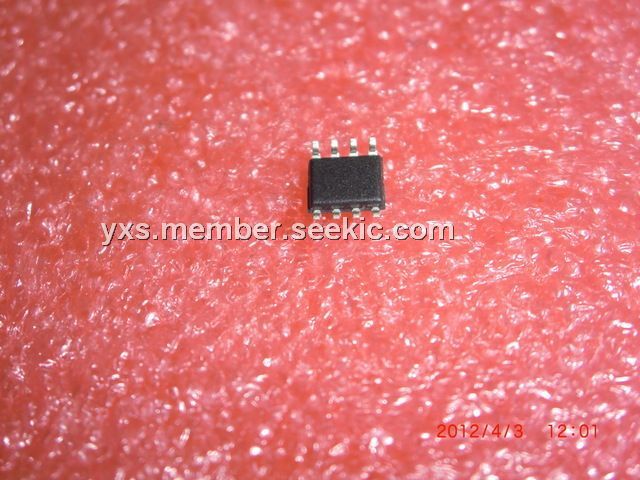

FAN7530MX, Critical Conduction Mode PFC Controller, 8-SOIC, 6V, 500mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~2.80

PartNumber:: FAN7530MX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-28

From Other Seller

Part Number:FAN7530MX
US $1.60 - 2.80
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
P480A02

US $46.00 - 52.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

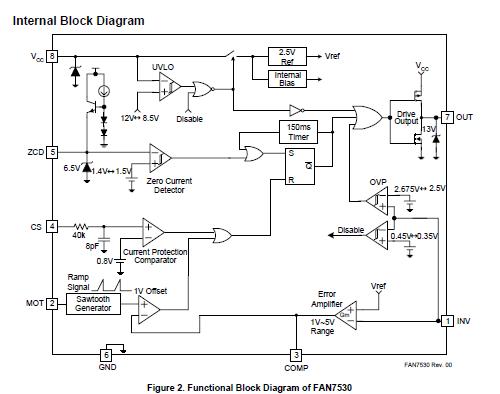

The FAN7530MX is an active power factor correction (PFC) controller for boost PFC applications that operates in critical conduction mode (CRM). It uses the voltage mode PWM that compares an internal ramp signal with the error amplifier output to generate MOSFET turn-off signal. Since the FAN7530MX does not need rectified AC line voltage information, it saves the power loss of the input voltage sensing network necessary for the current mode CRM PFC controller. The FAN7530MX provides many protection functions, such as over voltage protection, open-feedback protection, overcurrent protection, and under-voltage lockout protection. The applications of the FAN7530MX include Adapter, Ballast, LCD TV, CRT TV, SMPS.

Parametrics

FAN7530MX absolute maximum ratings: (1)Supply Voltage, VCC: VZ V; (2)Peak Drive Output Current, IOH, IOL: -800 to +500 mA; (3)Driver Output Clamping Diodes VO > VCC or VO < -0.3V, Iclamp: ±10 mA; (4)Detector Clamping Diodes, Idet: ±10 mA; (5)Error Amplifier, MOT, CS Input Voltages, VIN: -0.3 to 6 V; (6)Operating Junction Temperature, TJ: 150℃; (7)Operating Temperature Range, TA: -40 to 125℃; (8)Storage Temperature Range, TSTG: -65 to 150℃; (9)ESD Capability, Human Body Model, VESD_HBM: 2.0 kV; (10)ESD Capability, Machine Model, VESD_MM: 300 V; (11)ESD Capability, Charged Device Model, VESD_CDM: 500V.

Features

FAN7530MX features: (1)Low Total Harmonic Distortion (THD); (2)Precise Adjustable Output Over-Voltage Protection; (3)Open-Feedback Protection and Disable Function; (4)Zero Current Detector; (5)150μs Internal Start-up Timer; (6)MOSFET Over-Current Protection; (7)Under-Voltage Lockout with 3.5V Hysteresis; (8)Low Start-up (40μA) and Operating Current (1.5mA); (9)Totem Pole Output with High State Clamp; (10)+500/-800mA Peak Gate Drive Current; (11)8-Pin DIP or 8-Pin SOP.
