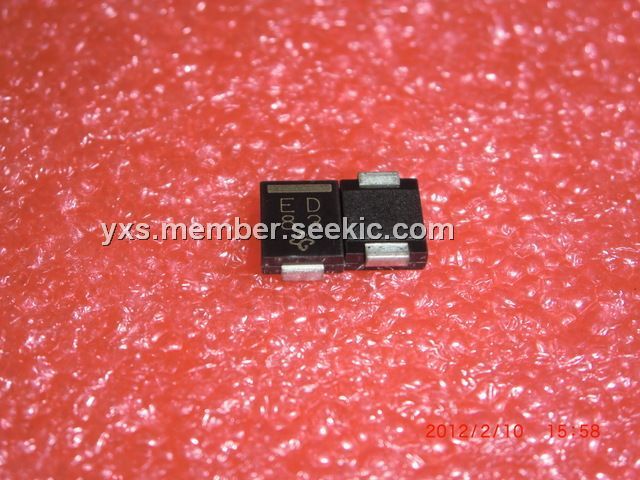

Product Summary
The ES3D is a Surface Mount Ultrafast Plastic Rectifier. It is used in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.
Parametrics
ES3D absolute maximum ratings: (1)Device marking code:ED; (2)Maximum repetitive peak reverse voltage:200V ; (3)Maximum RMS voltage:140V; (4)Maximum DC blocking voltage: 200V; (5)Maximum average forward rectified current at TL = 100℃: 3.0A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load: 100A; (7)Operating junction and storage temperature range:-55 to 150℃.
Features
ES3D features: (1)Glass passivated chip junction; (2)Ideal for automated placement; (3)Ultrafast recovery times for high efficiency; (4)Low forward voltage, low power losses; (5)High forward surge capability; (6)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (7)Solder dip 260℃, 40 s; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

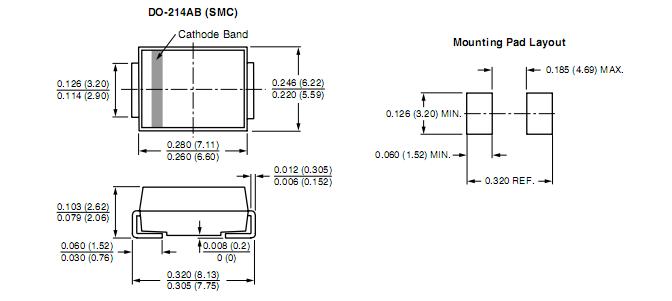

Diagrams
